XJ-700-DSP Amplifier

£788.58

Prices include tax in EU & UK. Shipping calculated at checkout.

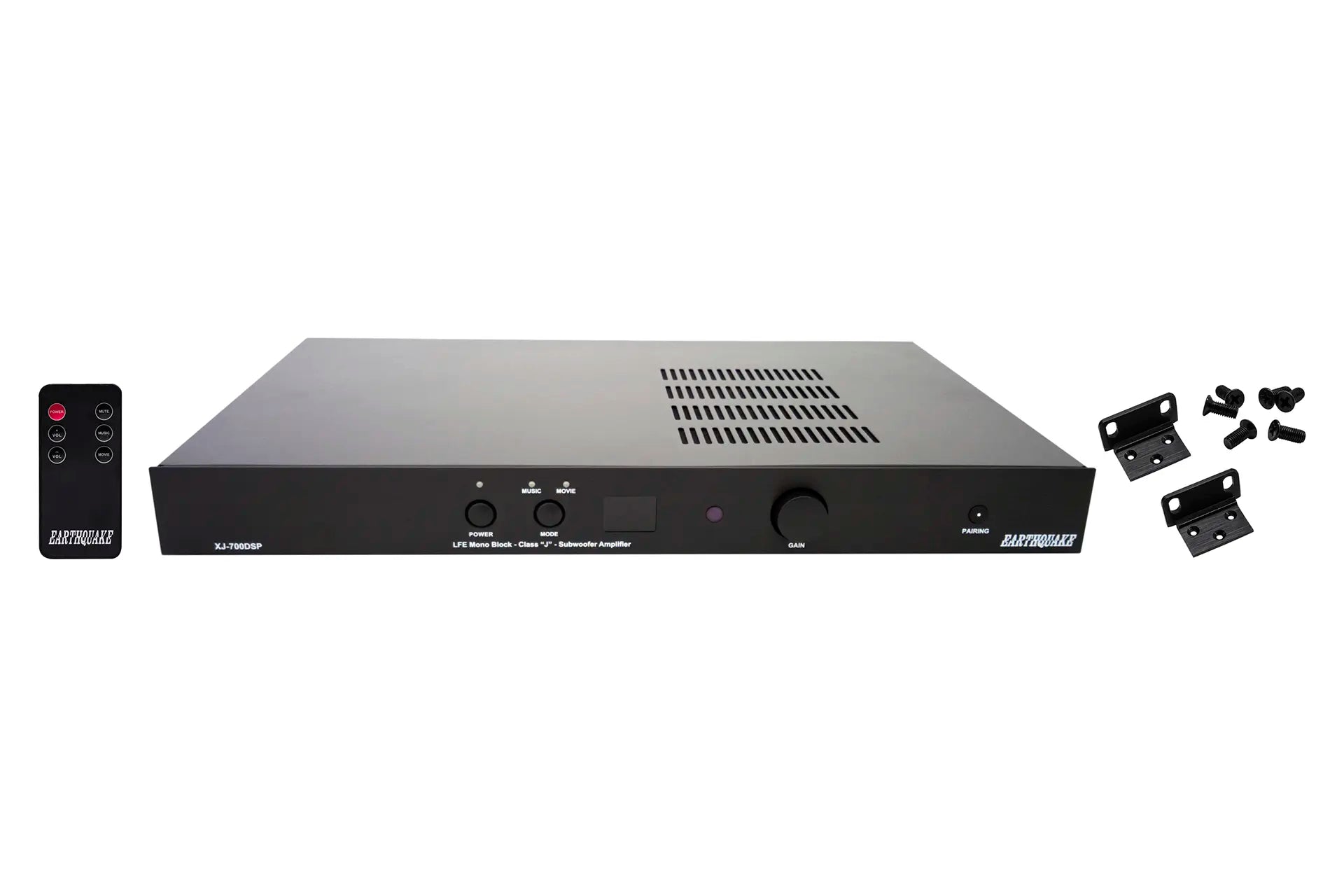

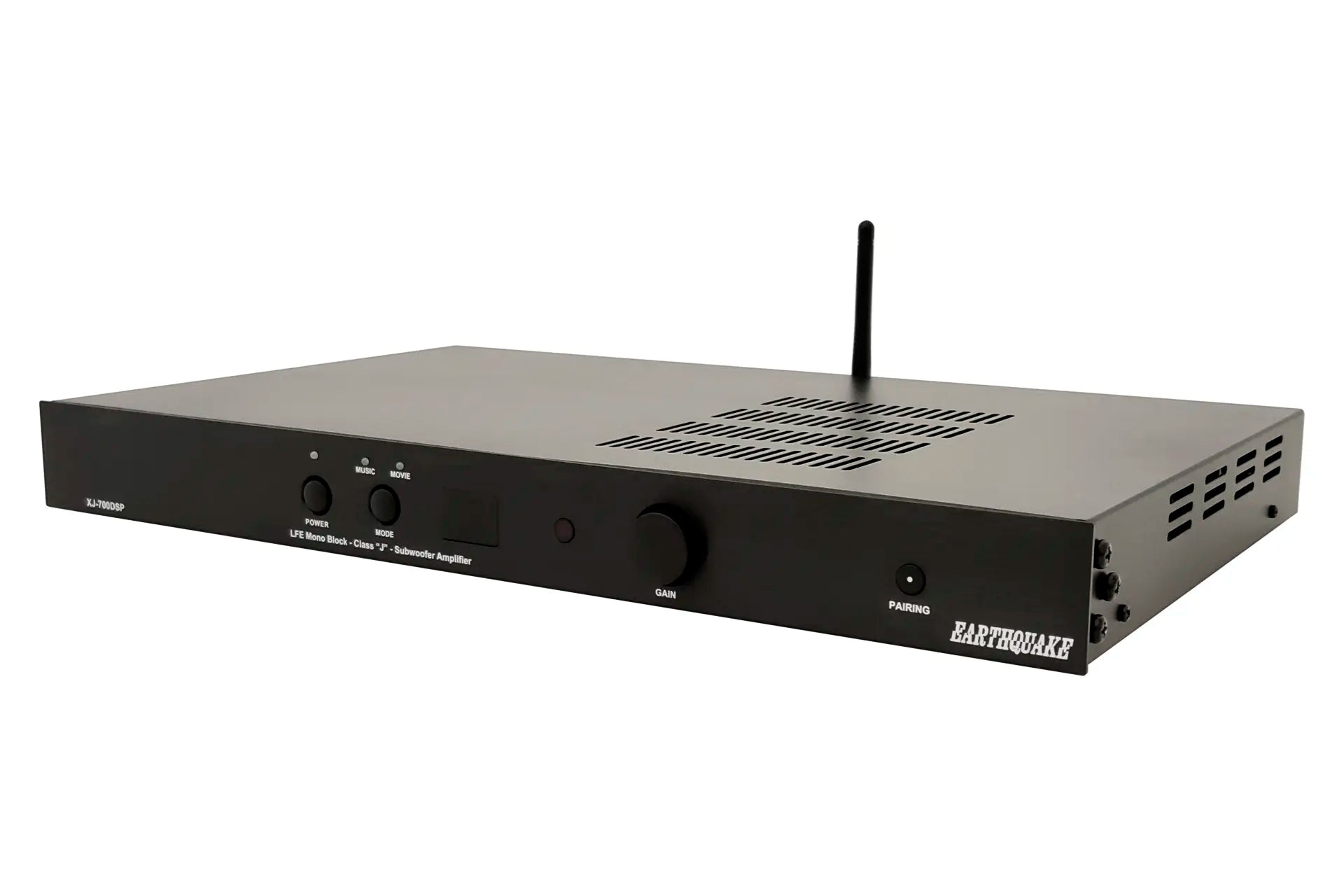

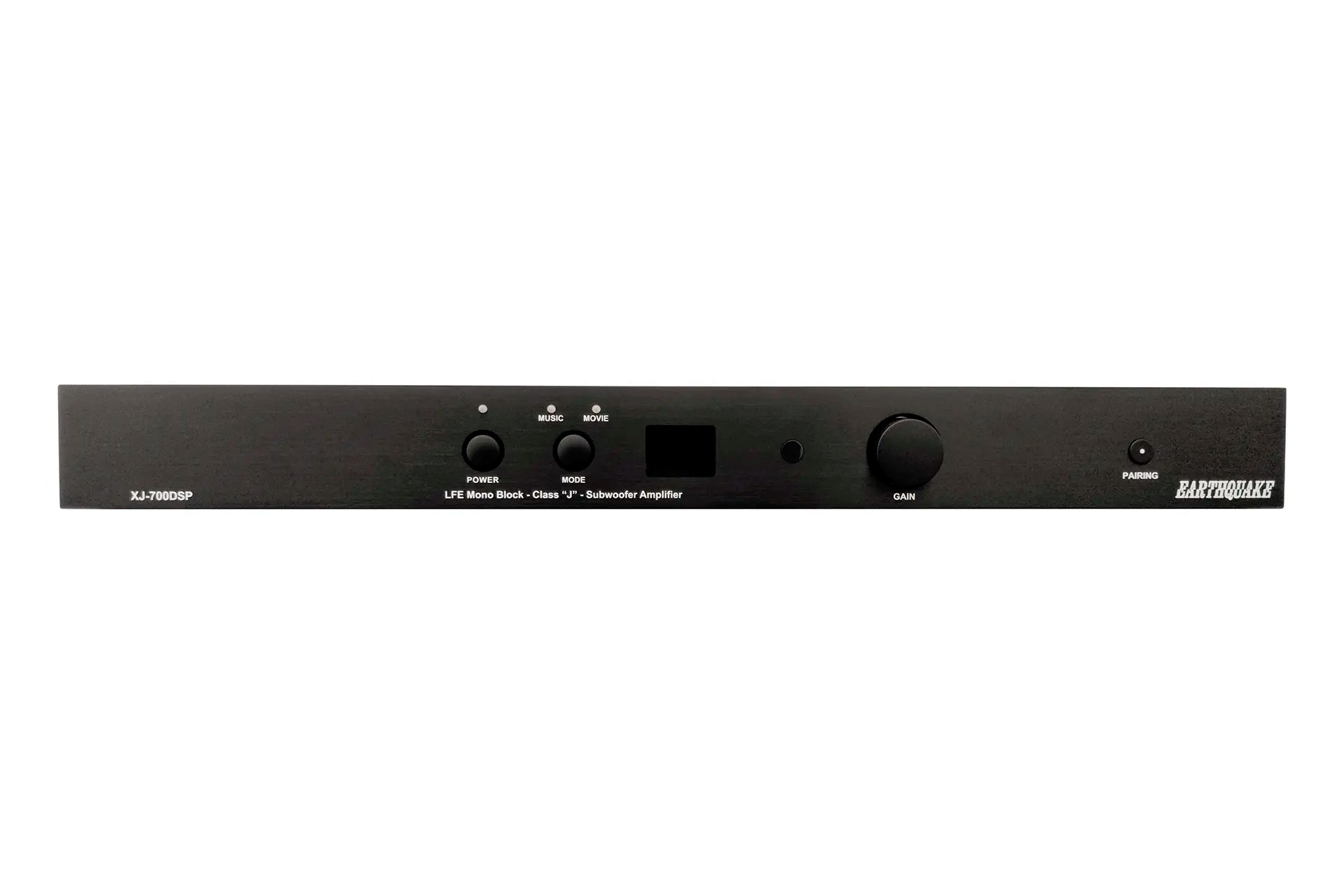

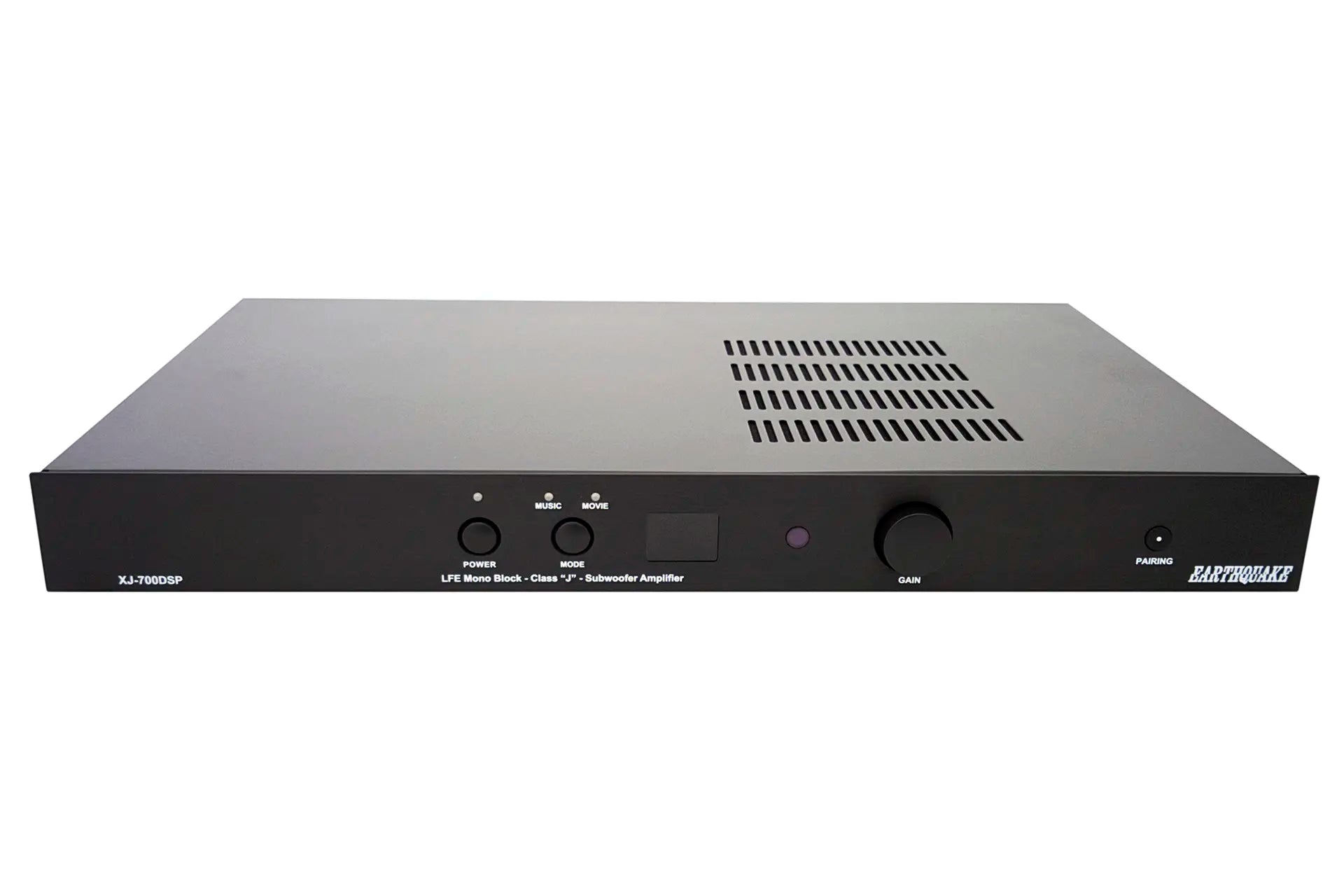

XJ-700-DSP – LFE Mono Block Amplifier with Built-in DSP Module

Earthquake’s XJ-700-DSP is the newest addition to the XJ Series of home and professional audio amplification. Like the XJ-700R, it addresses the need to correctly adjust a room to precision audiophile status, but now with the added benefits of controlling the DSP from your finger tips via a mobile app. You can take full advantage of what this subwoofer amplifier has to offer by making on-the-fly adjustments for the utmost in sound quality and user control with features like auto room correction and up to 60dB/Oct filters.

SKU: XJ-700-DSP

EAN: 0689759001973

Collections:

£788.58

XJ-700-DSP - LFE Mono Block Amplifier with Built-in DSP Module

The XJ-700-DSP has a unique built-in Boundary EQ designed to remove exaggerated boomy sounds created by corner loading, large wall surfaces, or installations inside custom cabinetry; other amplifiers try to equalize the room only by adjusting the volume. This amplifier addresses the actual phase correction problem along with the room EQ. The XJ-700-DSP can also power multiple tactile transducers like Earthquake’s Q10B, as well as high response subwoofers like the patented THOR in-wall shallow subwoofer making it an extremely versatile option. Additionally, users may also connect any other passive subwoofer/s to this amplifier.

The XJ-700-DSP is ideal for handling heavy-duty subwoofer applications to driving the equipment of everyday home audio enthusiasts and professionals. It was designed to exceed the highest expectations in audio amplification for folks who desire full control and ability to adjust all parameters of operation. With the new XJ-700-DSP, a customized room response has never been easier.

Specifications
Model Name: XJ-700-DSP
EAN: 0689759001973

Damping Factor: > 500
Frequency Response: 13Hz -160Hz
Load Impedance: 4 Ohms or greater
Low Pass Filter: 40Hz–160Hz (Low Pass Variable Filter)

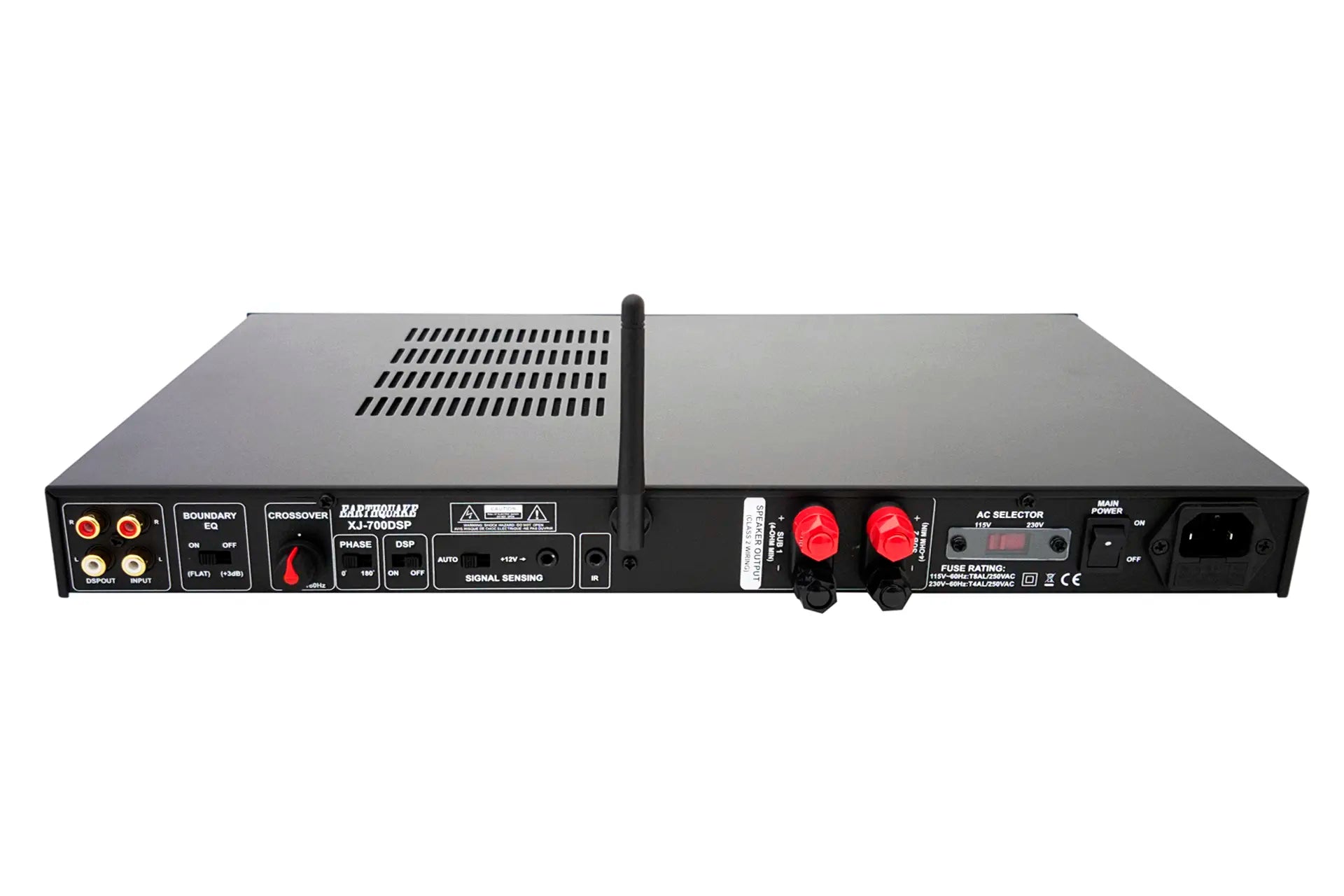

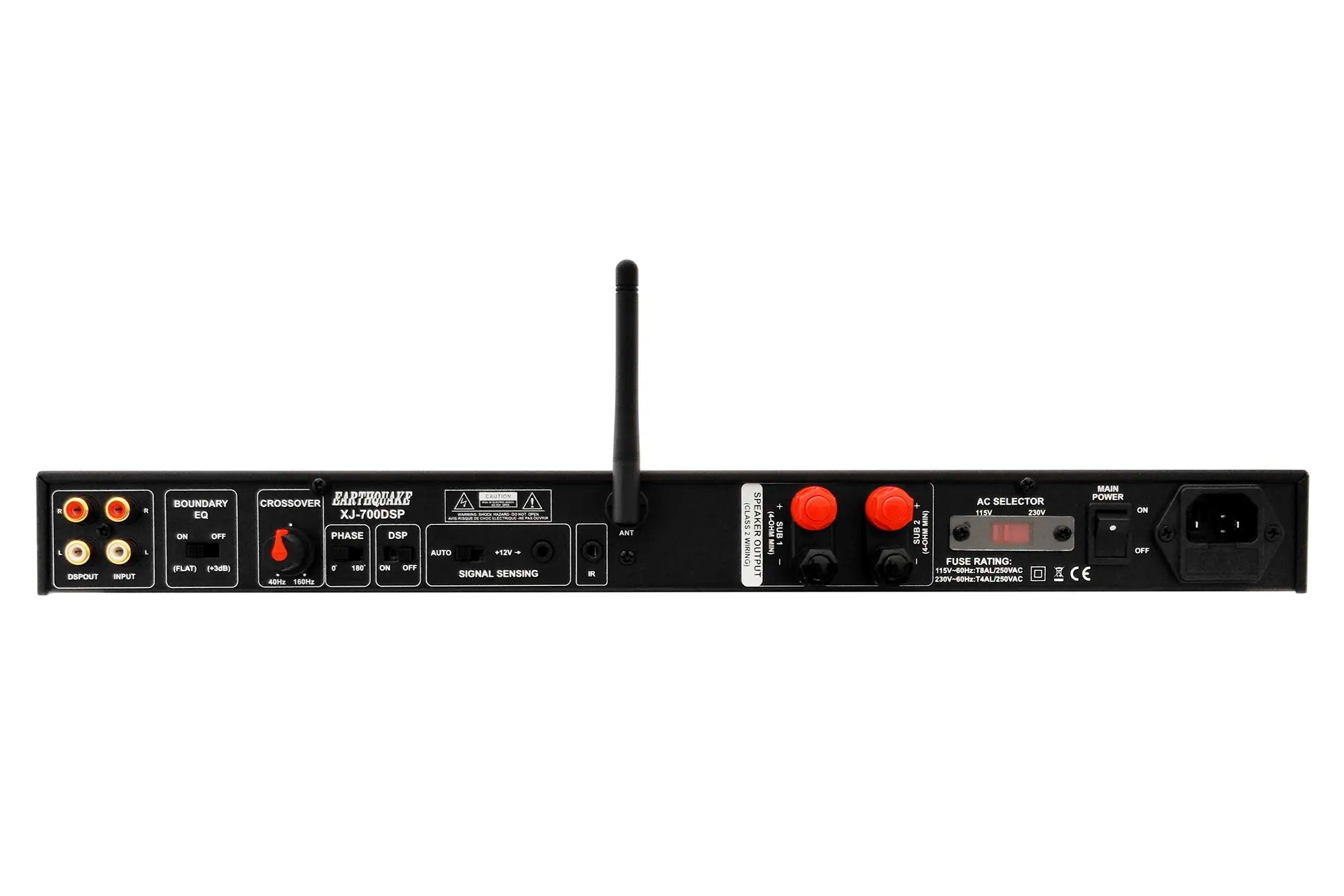

Output Connections: 5-Way binding posts, RCA (DSP OUT)
Output Power: 1 x 400 WRMS @ 8-Ohm, 1 x 700 WRMS @ 4-Ohm
Slew Rate: 50 V/ms
S/N: > 108dB (unbalanced), > 112dB (balanced)
THD: < 0.02% (1W/4-Ohm)
Note: The minimum rated impedance is 4-Ohm total. On the actual amp it specifies 4-Ohm minimum on each terminal. These terminals however operate as one meaning that you can either put a 4-Ohm load on one of them and none on the other OR put an 8-Ohm load on both of them resulting in a total impedance of 4-Ohm.

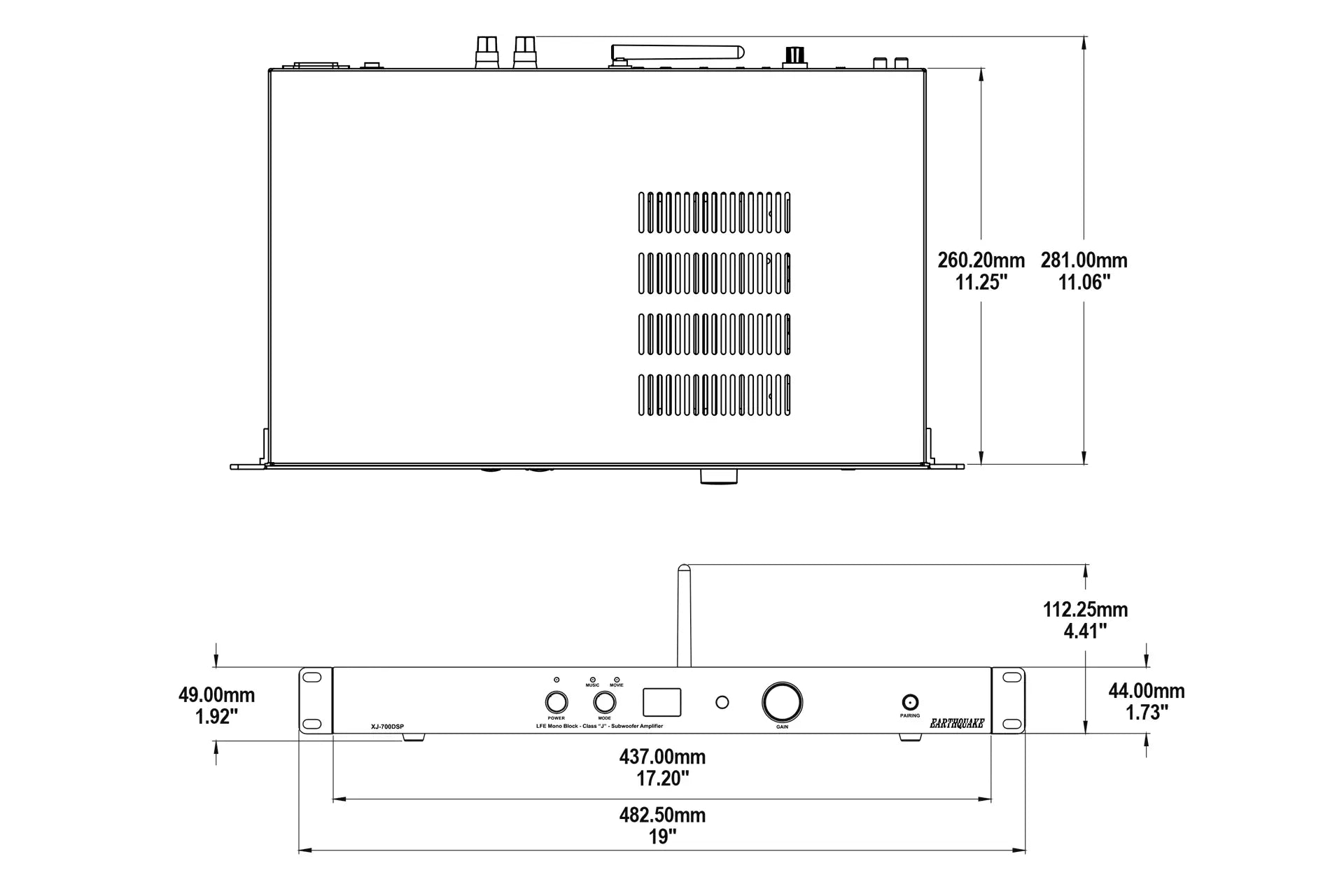

Box Dimensions: 15 × 38 × 56 cm
Box Weight: 9.4 kg
