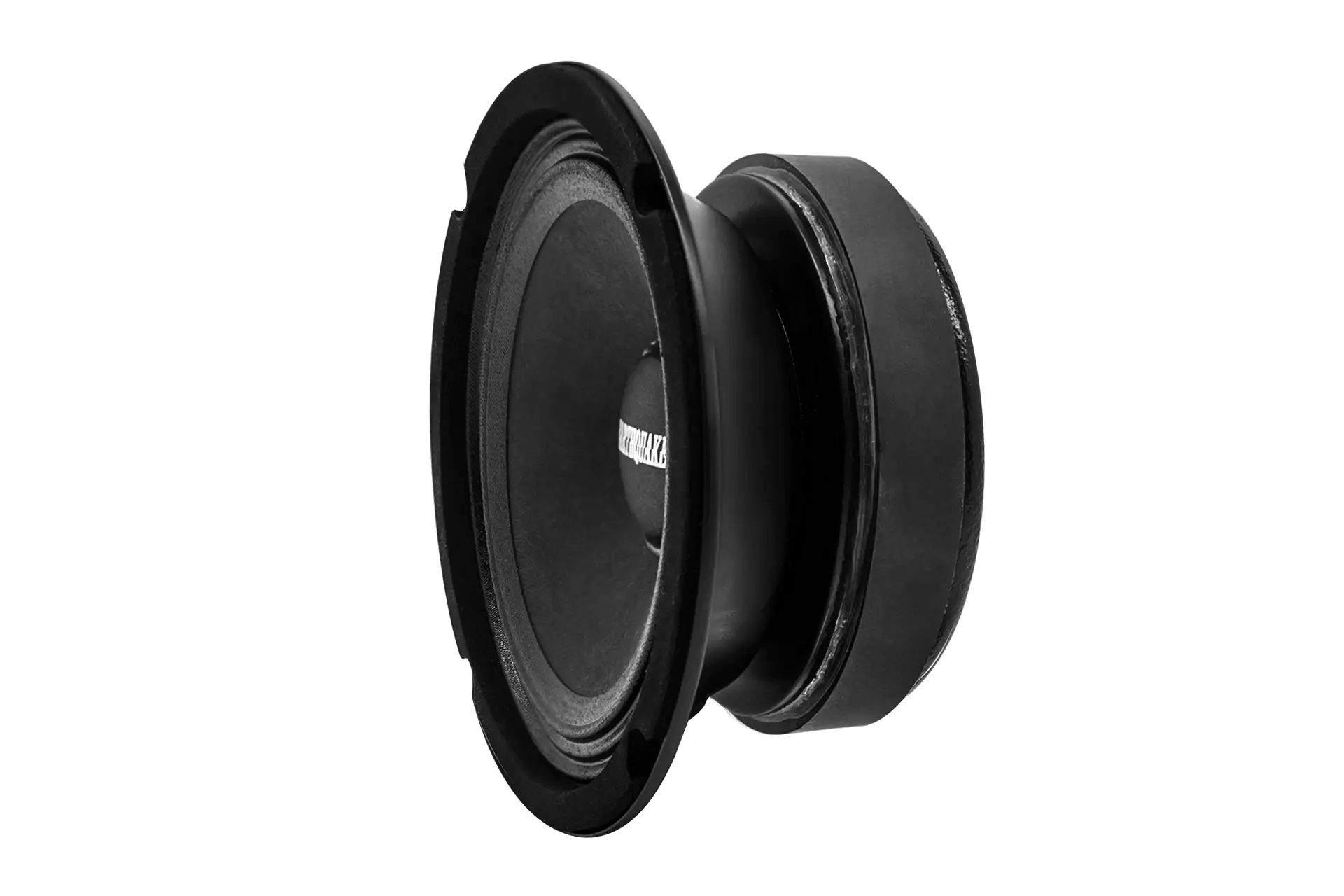

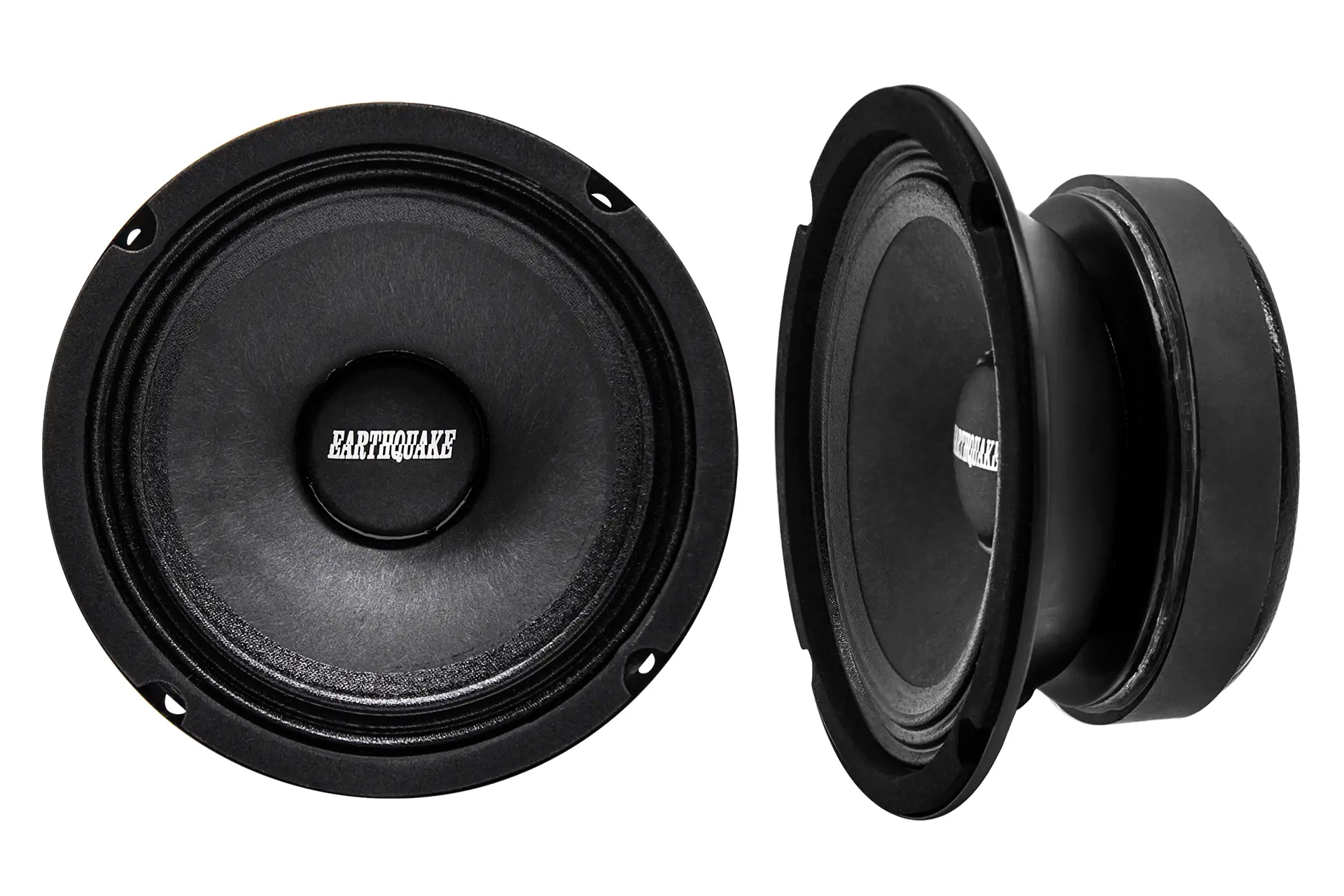

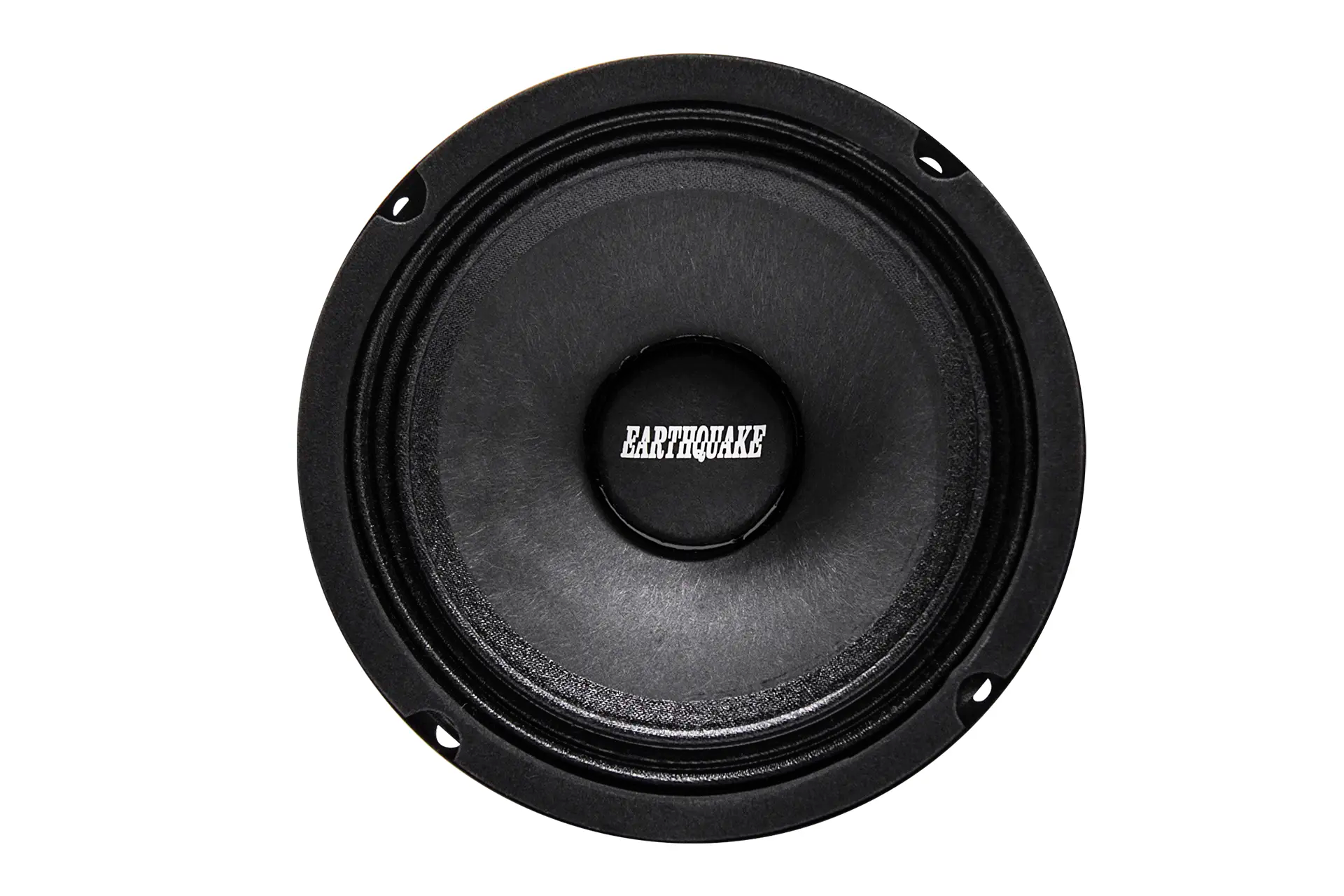

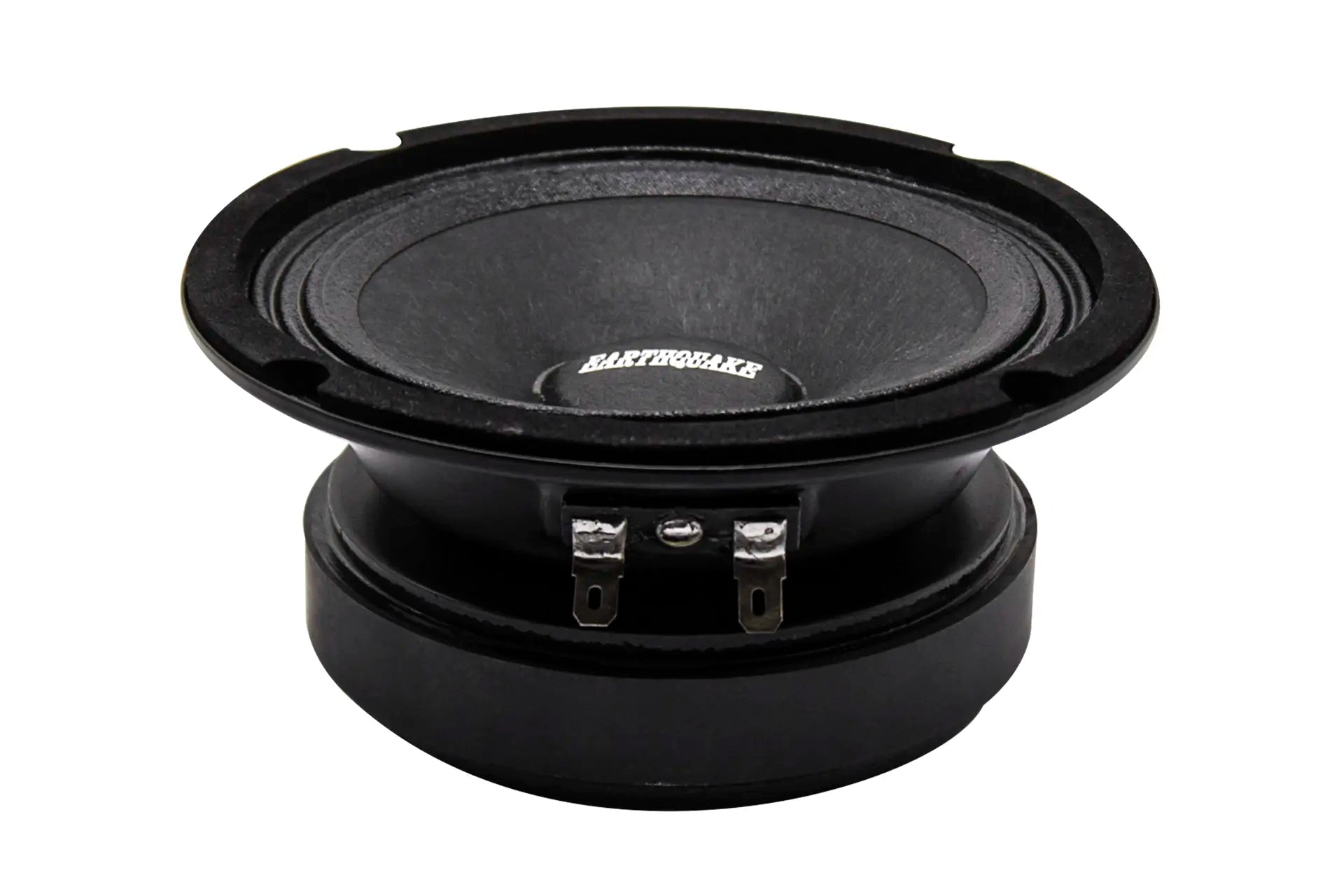

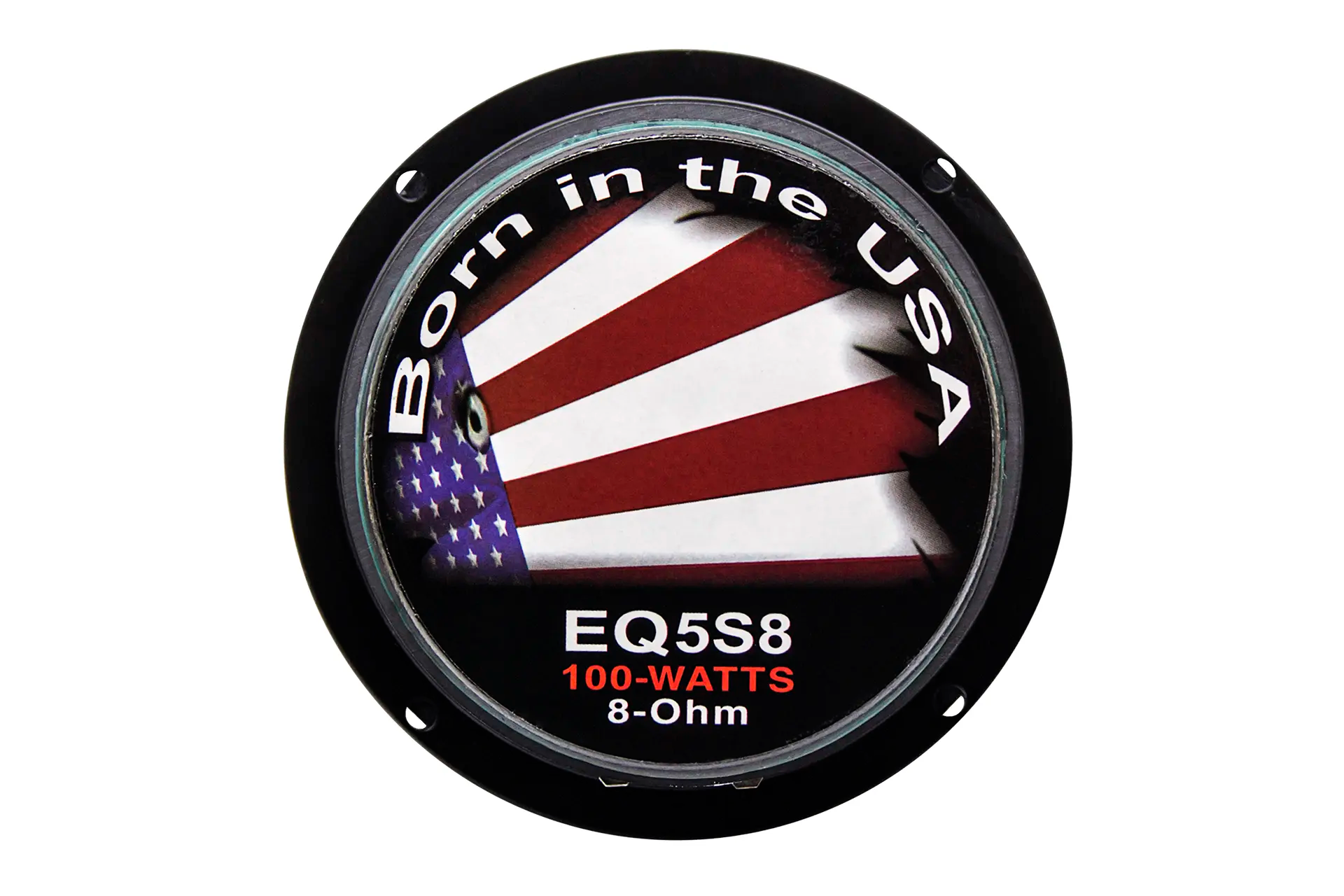

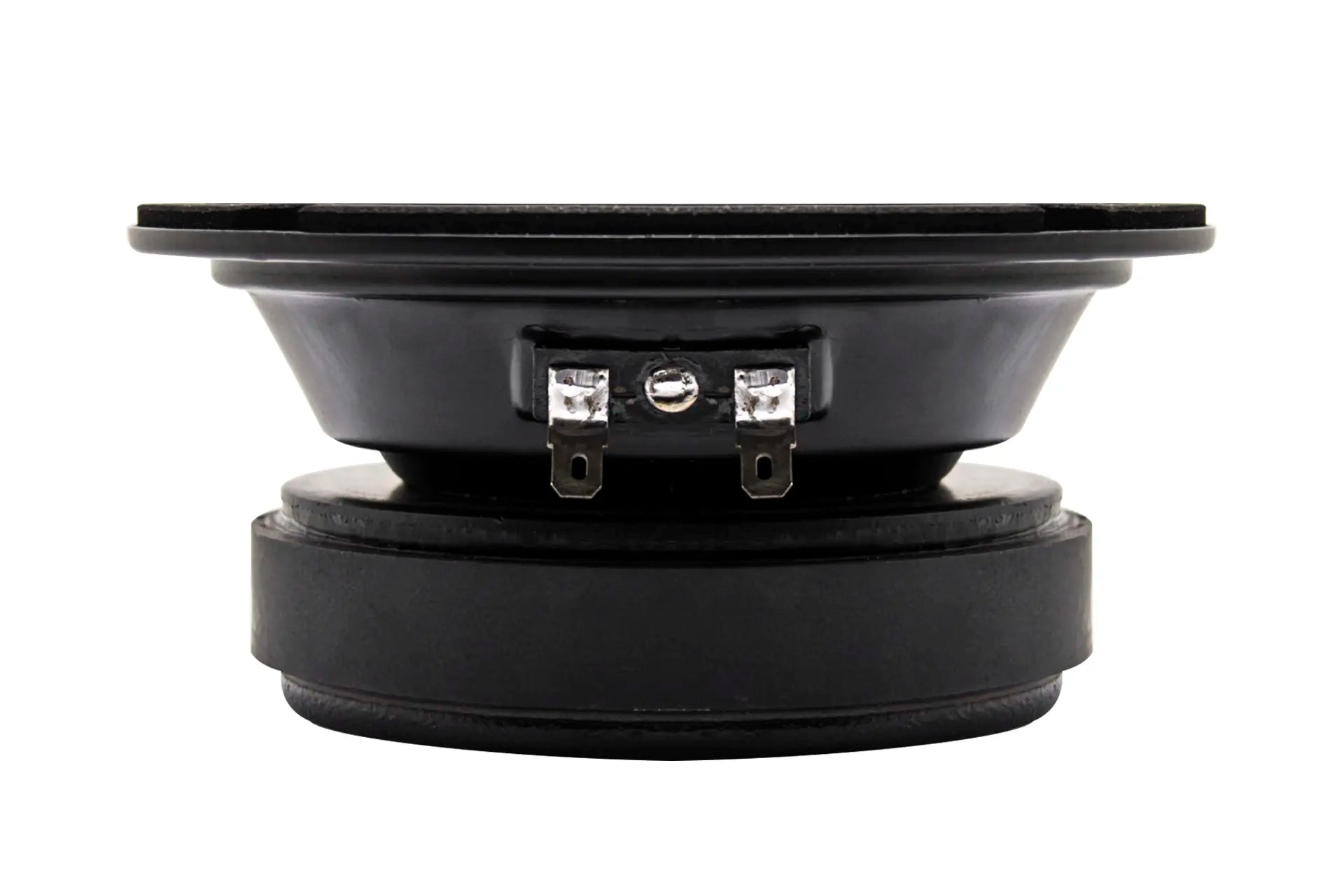

EQ-5-S8

Sold per piece.

The Earthquake EQ line of Maximum Musical Output drivers are specifically designed to provide smooth, low-distortion mid-range/mid-bass output for the highest quality sound reinforcement applications.

Because of their relatively high resonance and very low Qts values, the EQ line can be mounted in small enclosures while maintaining a smooth, peak-free response.
£0.00
£0.00

Specifications
Model Name: EQ-5-S8
EAN: 0168975910486

  • Frequency Response: 300Hz - 14kHz
  • Magnet Weight: 30oz. (0,85 kg)
  • MAX Power: 100W
  • Nominal Impedance: 8 ohm
  • Resonance: 503Hz +/- 15%
  • Sensitivity: 96 dB
  • Woofer Size: 5" (127mm) Midbass

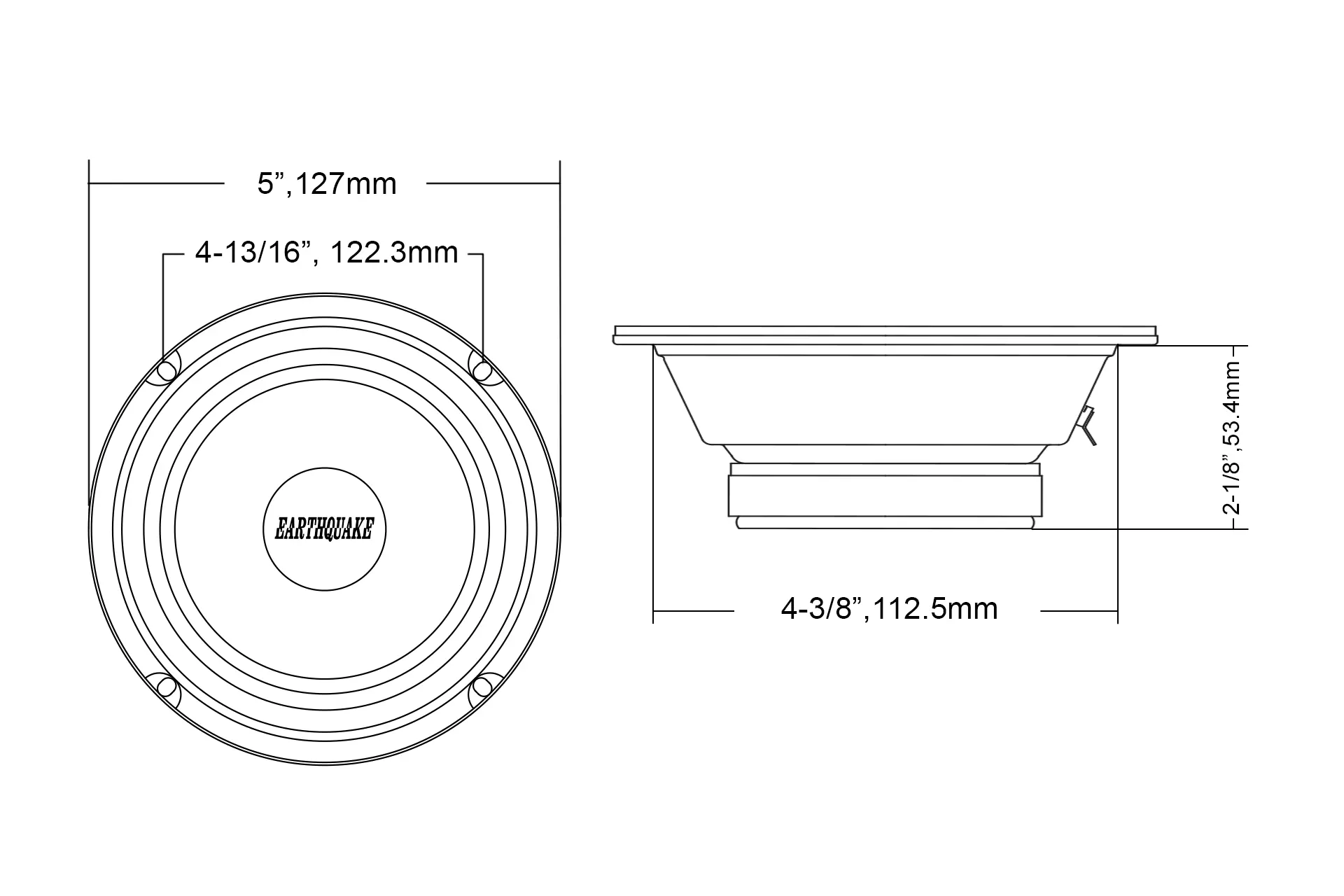

Dimensions

  • Diameter: 127 mm
  • Cut out hole: 112 mm
  • Mounting Depth: 53.4 mm

Parameters

  • Qms: 11.286
  • Qes: 1.635
  • Qts: 1.428
  • Xmax: 2mm

Box Dimensions: N/A
Box Weight: 1.35 kg

  • 8-Ohm or 4-Ohm impedance options
  • Bumped Back Basket
  • Edge-wound aluminum bobbin voice coils
  • Enhanced sound quality
  • Heavy duty ferrite magnets
  • High efficiency / sensitivity
  • Low harmonic distortion
  • low mass cone
  • Max output
  • Multi roll cloth surround
  • New longer lasting
  • Not Vented T-Yoke
  • Sealed Basket
  • Stamped steel basket with jet-black finish
