DJ-QUAKE-SUB

Sold per piece.

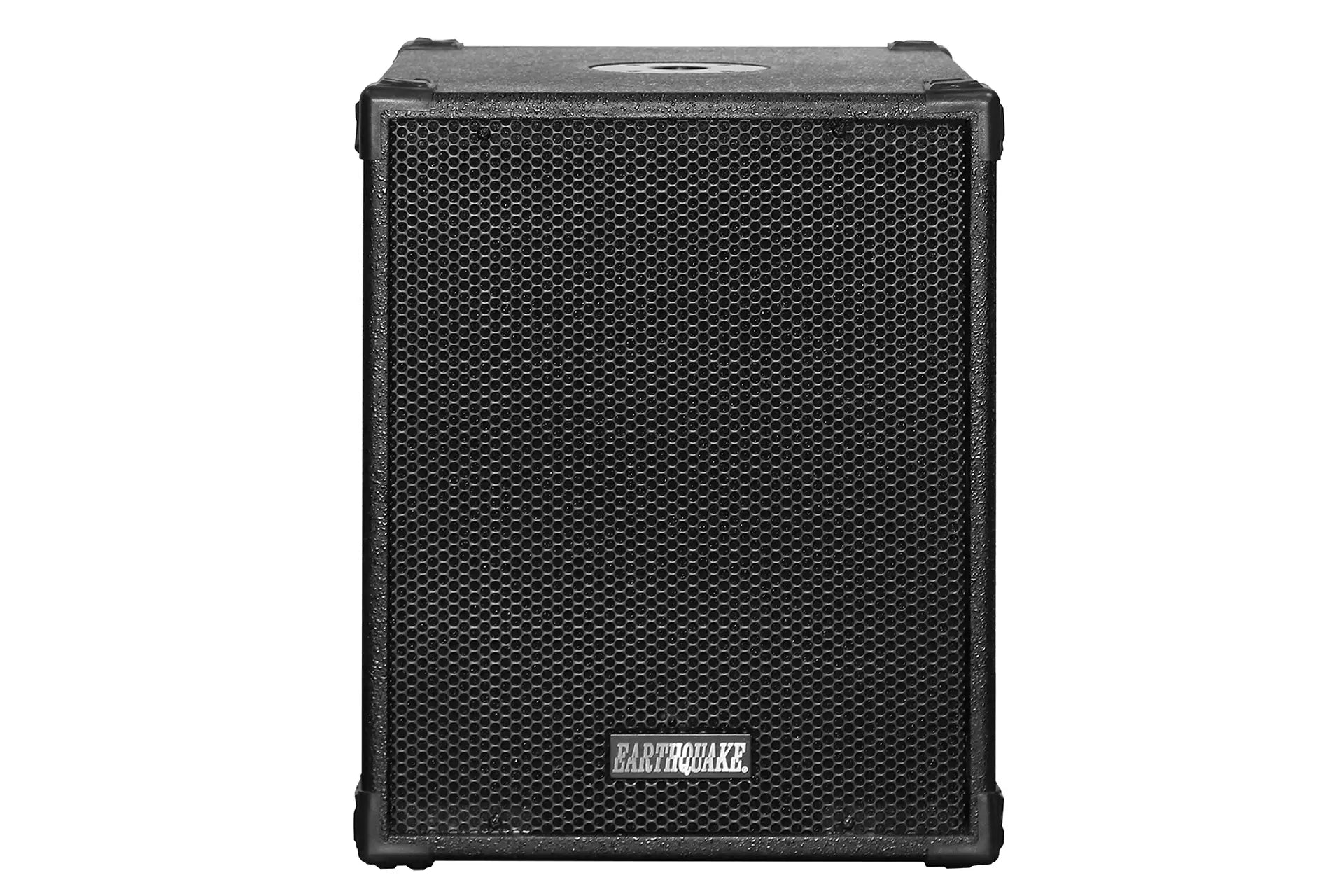

DJ-QUAKE-SUB - 12" Powered Subwoofer

DJ-Quake-Sub V2 is the new and improved powered subwoofer for the DJ-Quake-2.1-V2 system. This 12-inch subwoofer has built-in 1200-Watt amplifier (600 Watts RMS).

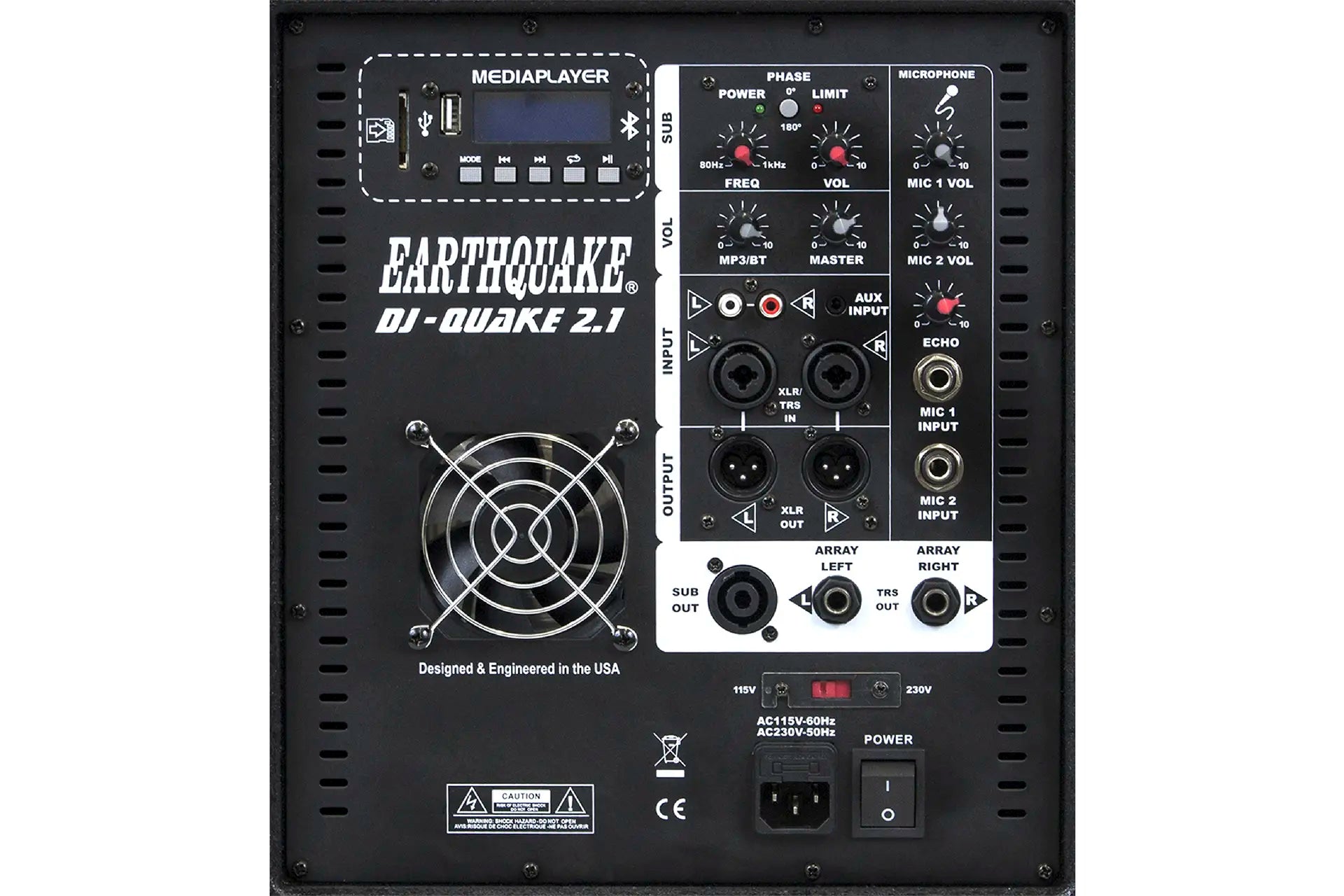

It features balanced (XLR/TRS) and unbalanced (RCA/AUX) line inputs, two MIC inputs as well as a digital media player with USB/SD and Bluetooth® inputs. Additionally, the DJ-Quake Sub V2 has balanced (XLR/TRS) and Speakon (for added passive sub) outputs.
£0.00
£0.00

Intended Use:

  • DJ and/or Pro Sound applications
  • PA systems, Karaoke, live music
  • Schools, halls, places of worship
  • Gyms/fitness centers

In the box:

  • One (1) 12” Powered Subwoofer
  • One (1) Remote Control
  • One (1) Manual
  • One 6ft (1.8m) Power Cable

Specifications
Model Name: DJ-QUAKE-SUB
EAN: 0689759001775

  • Crossover Frequency: 80Hz - 1kHz
  • Fuse Rating: Ø5 x 20mm 5A/250V UL/VDE slow blow tube fuse
  • MAX Power: 1200W
  • RMS Power: 600W
  • Sensitivity: 105 dB (± 2dB)
  • Woofer Size: 12"

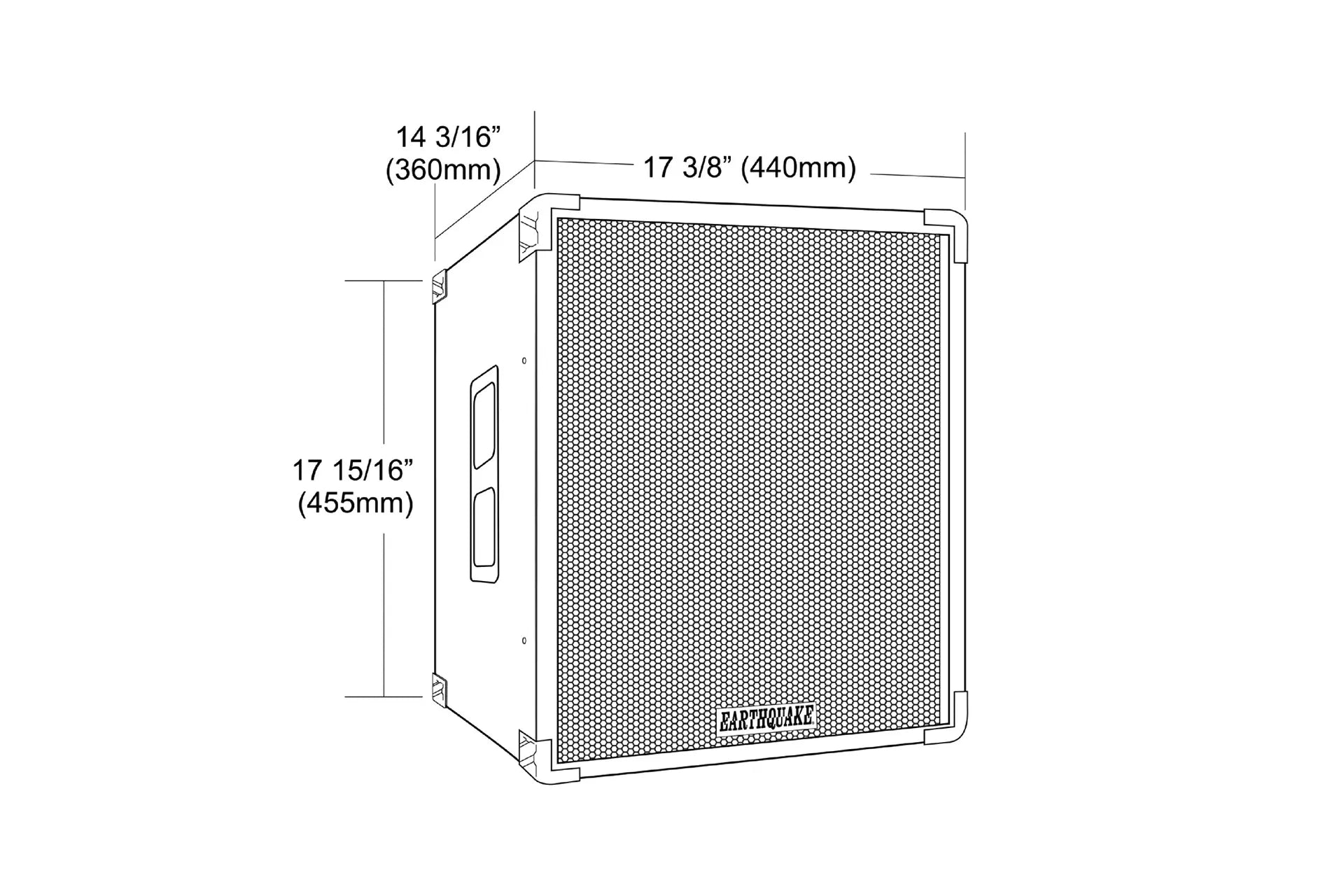

Dimensions

  • Height: 455 mm
  • Width: 440 mm
  • Depth: 360 mm
  • 0 - 180° phase switch
  • AC Power Input with Built-in fuse
  • Built-in 1200 Watt (600 Watts RMS) amplifier
  • Built-in Class D Amplifier
  • Built-in Equalizer
  • Built-in multimedia player with LCD screen (supports SD / MMC - USB - Bluetooth®)
  • Built-in Speaker Stand Adapter
  • Carrying Handles & Corner Bumpers
  • Echo Level Control
  • Inputs: Bluetooth® - SD / MMC - USB - Balanced (XLR/TRS) - Unbalanced (RCA/AUX) - Dual MIC inputs
  • Limit LED
  • Main Power Switch
  • Master Volume Control
  • Mic 1 & Mic 2 Volume Control
  • Multimedia Volume Control
  • Outputs: Balanced (XLR/TRS) & Speakon (passive SUB out)
  • Passive Sub Link
  • Remote Control
  • Sub Frequency Control
  • Sub Volume Control
