CM-500 (B-Stock) SINGLE UNIT

£27.26
£27.26
Prices include tax in EU & UK. Shipping calculated at checkout.

****
B-STOCK PRODUCT

CONDITION: SAU:0045. Fully functional.
Several scratches on grille. Single unit.

****
SKU: CM-500 SAU:0045
EAN: 0068975900169
Collections:
£27.26
£27.26

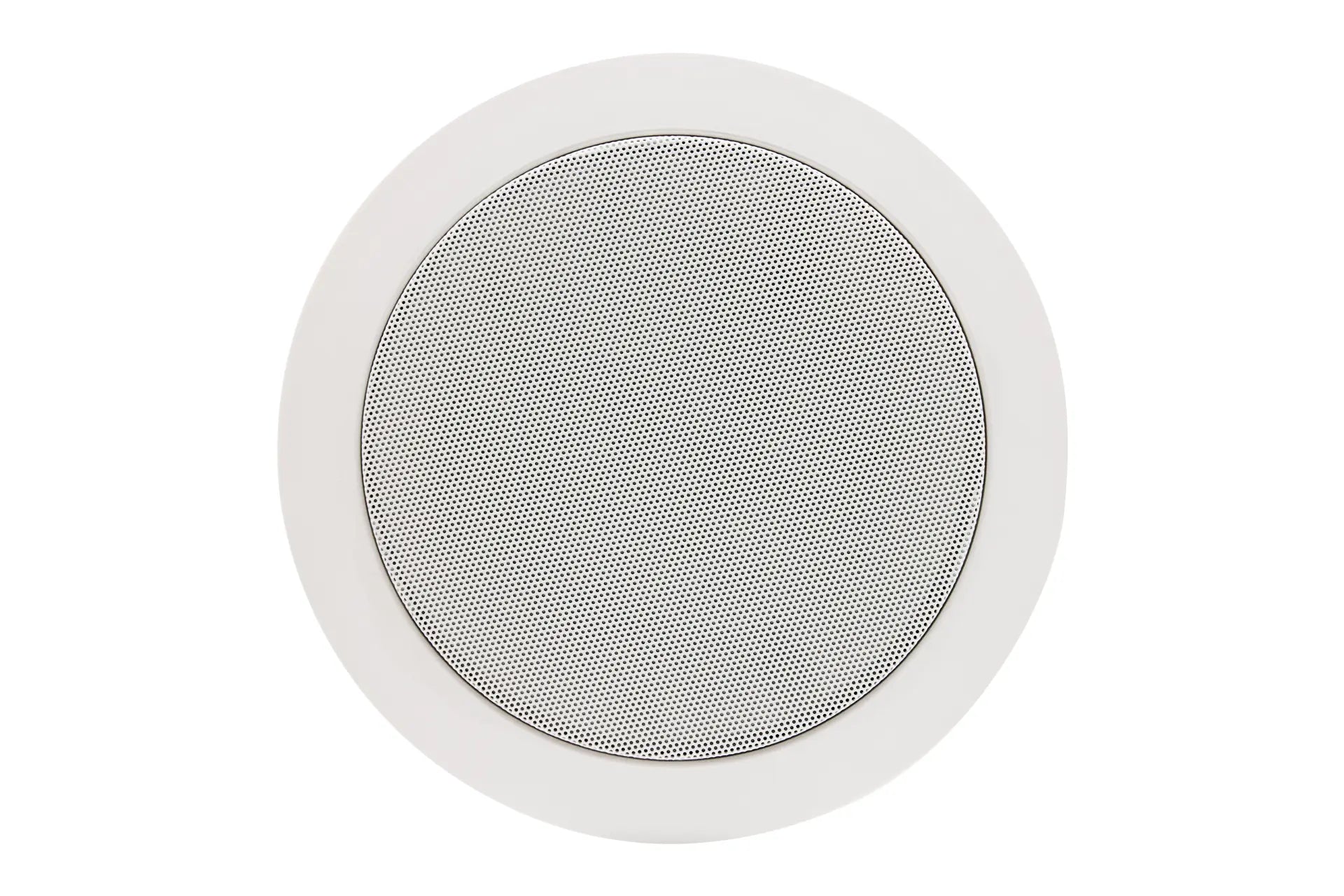

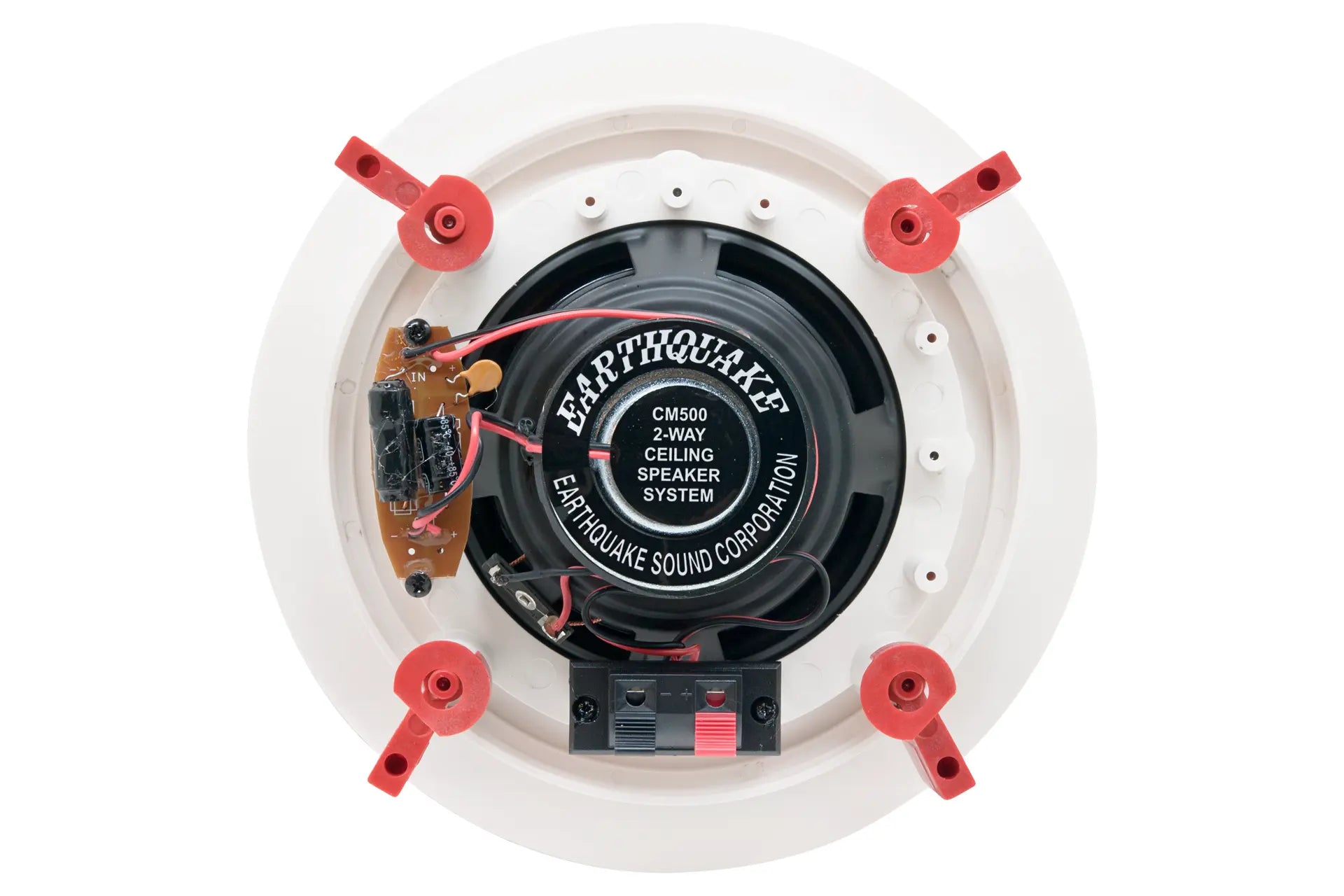

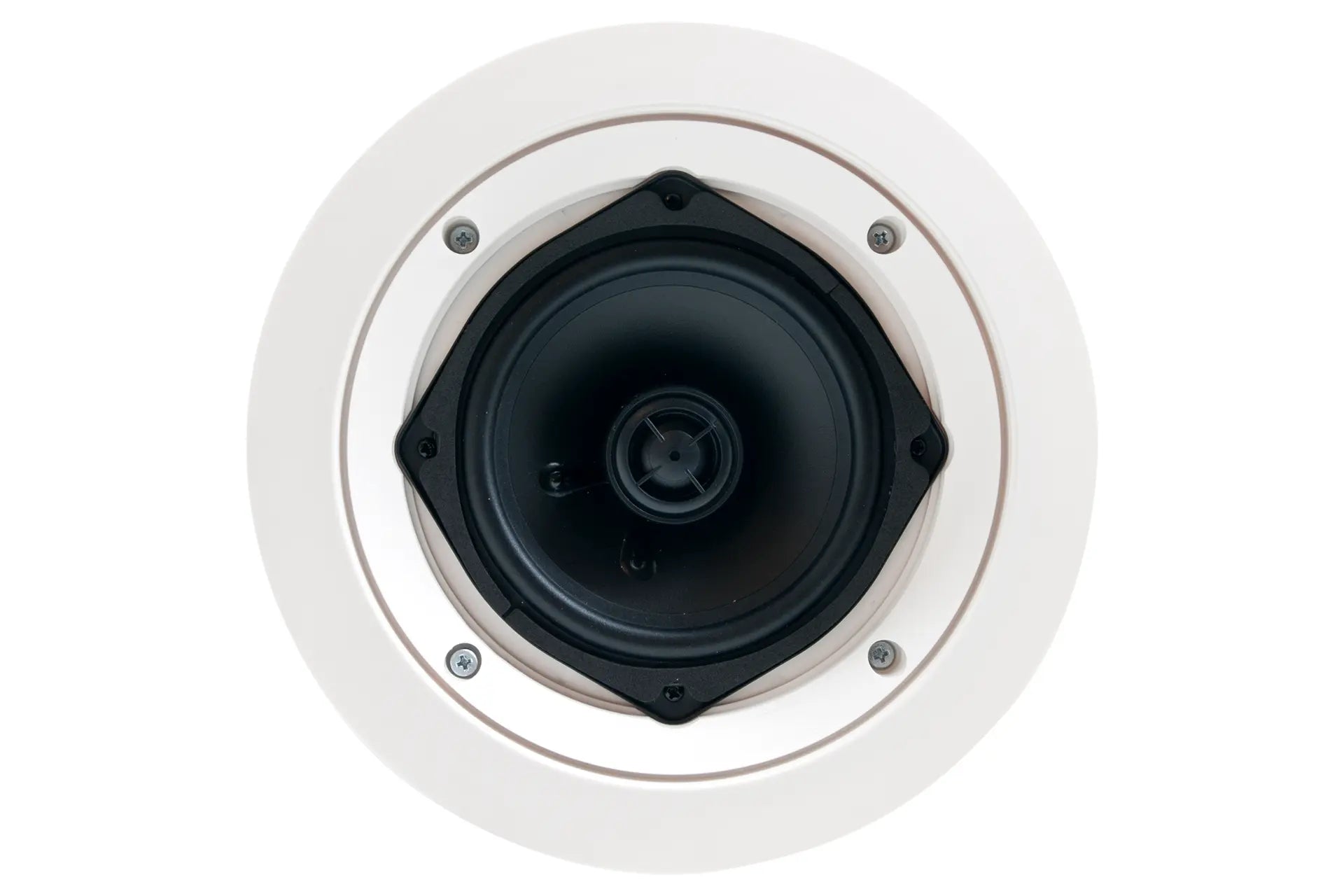

CM-500 In-ceiling speaker

The Image in-ceiling speakers are designed to produce an incredible sound pressure level with only a mere 5 watts. Most multi-zone amplifiers often have less than 35 watts of power. The efficient Image speakers can produce an audiophile performance with ease, making them to solution to your multi-zone application.

The cone of Image in-ceiling series is made of a patented fiber impregnated poly which provides a stiff cone with only half the mass. Each speaker is equipped with a 20mm silk dome tweeter with a rotating mount, allowing the tweeter to be aimed at the direction of the listeners. In addition to the push terminal feature, the Image in-ceiling speakers also have a poly switch to prevent them from getting over powered.

Just as its in-wall counterpart, the Image in-ceiling spekaers have rust proof grills and paintable speaker frames.

Specifications
Model Name: CM-500
EAN: 0068975900169

  • Woofer: 5 1/4" (133mm) Low mass poly-mica
  • Tweeter: 1" (25mm) adjustable silk dome
  • RMS Power Rating: 10-90Watts
  • Frequency Response: 70 - 21.000Hz
  • Sensitivity: 90dB@1W/1M
  • Nominal Impedance: 8-Ohm
  • Finish: White / Paintable
  • 3/4" neodymium magnet dome tweeter with "On-Axis" - 380 degree positioning for better staging and imaging
  • Easy connect spring loaded binding posts

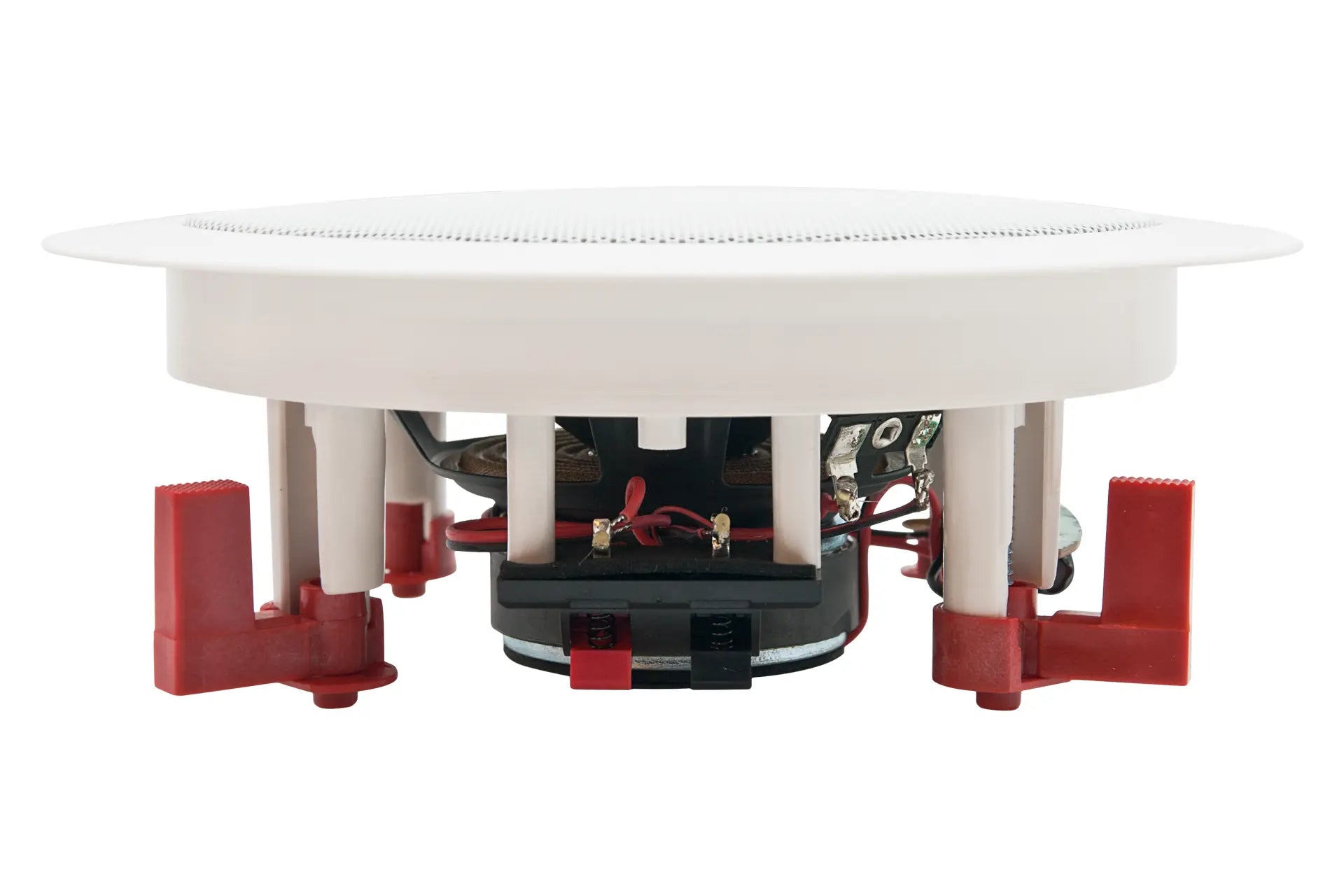

  • Easy-install "Turn-N-Lock™" mechanism
  • High Sensitivity & Power Handling
  • Image Style easily integrates with Image in-wall speakers and even Earthquake IQ speakers
  • Long excursion bumped back plate and thick gauss magnet.
  • Long Life and Moisture Resistant Materials including butyl rubber surrounds and poly injection cones for safe use in kitchens & bathrooms and atriums
  • Paintable Rust-proof Aluminum Grilles for superior protection and job flexibility
  • PistonMax Woofer Design for more accurate mid-bass with out distortion
  • Poly Injection Composite Drivers for smooth widerange response with low distortion
  • Poly switch for tweeter protection
  • Turn -N- Lock Installation for safe and efficient and professional installs

CM-500 Manual (ENG)

CM-500 Cut-sheet (ENG)

CM-500 Product Release (ENG)
