BT-44S Tweeter

£21.33

£21.33

Prices include tax in EU & UK. Shipping calculated at checkout.

Sold per piece.

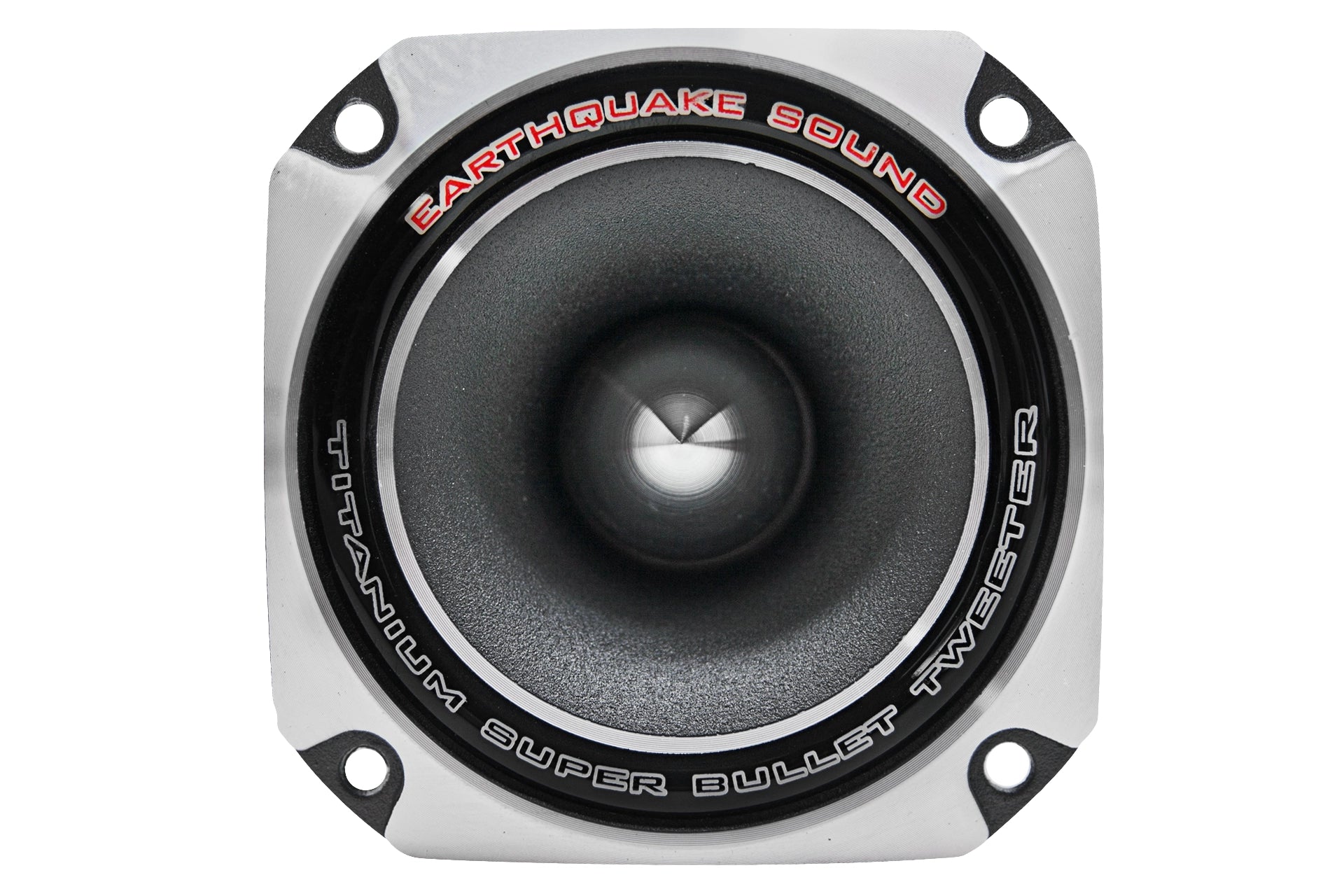

The BT44S is a heavy duty titanium bullet tweeter. It efficiently hits highs and mids and can adapt to any system.

SKU: BT-44S

EAN: 0168975910370

Collections:

£21.33

£21.33

Specifications
Model Name: BT-44S
EAN: 0168975910370

Frequency Response: 2kHz - 20kHz
MAX Power: 150W
Nominal Impedance: 8 ohm
Sensitivity: 104 dB
Voice Coil Diameter: 1" / 25.4 mm

Dimensions

Height: 60.5 mm
Cutout Diameter: 76 mm
Mounting Depth: 53 mm
Mounting Diameter: 87 mm
Screw Hole Diameter: 5 mm

Parameters

Fs: 2133 Hz
Qms: 1.99
Qes: 3.25
Qts: 1.24
Re: 4.9 ohm

Box Dimensions: N/A
Box Weight: 0.68 kg

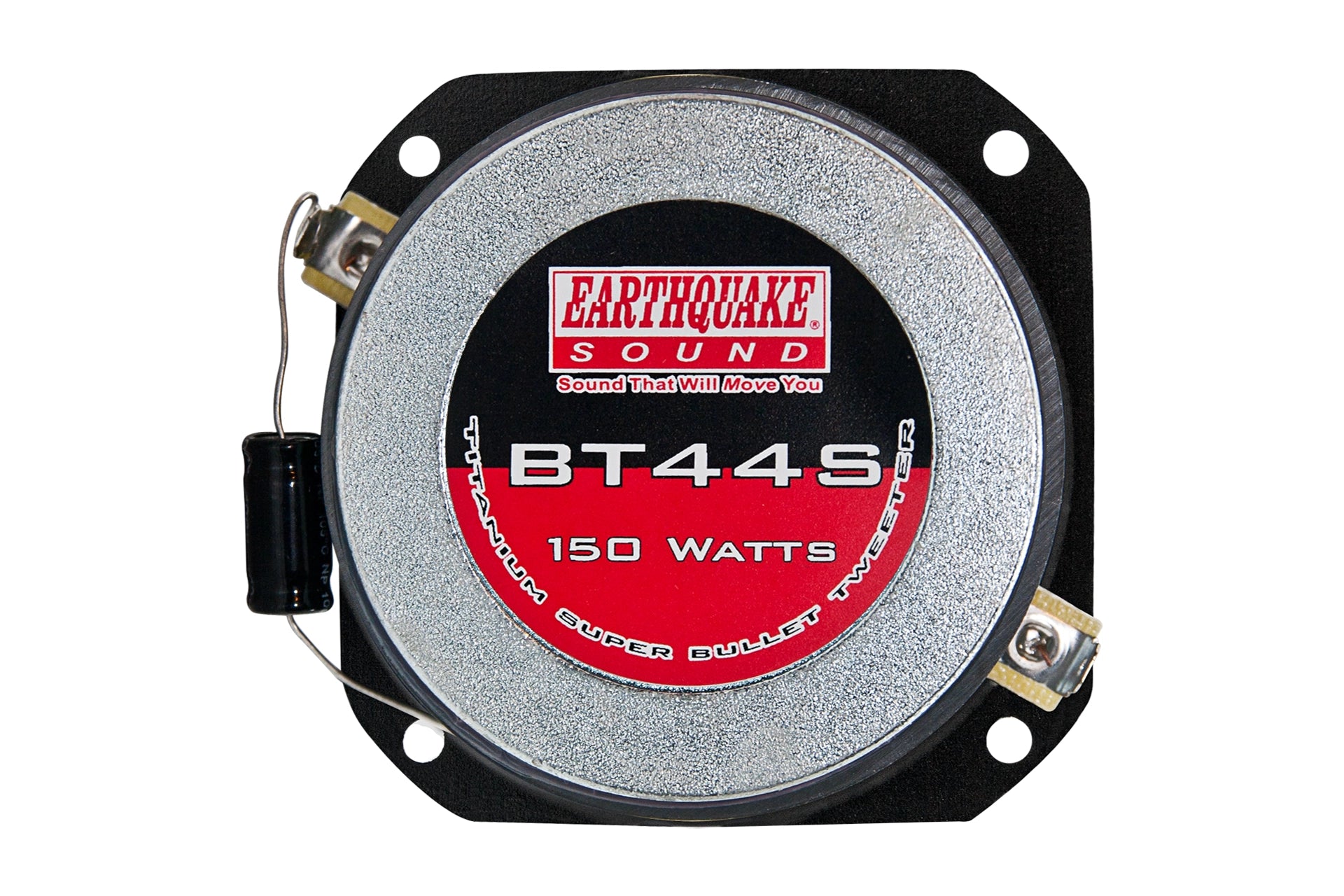

Crossover capacitor included
Diecast aluminum housing
Ferrofluid cooled
Kapton voice coil
Optional Replacement Voice Coil Available
Titanium dome

BT-44S Manual (ENG)

BT-44S Product Release

Frequency & Impedance Graph for BT-44S
