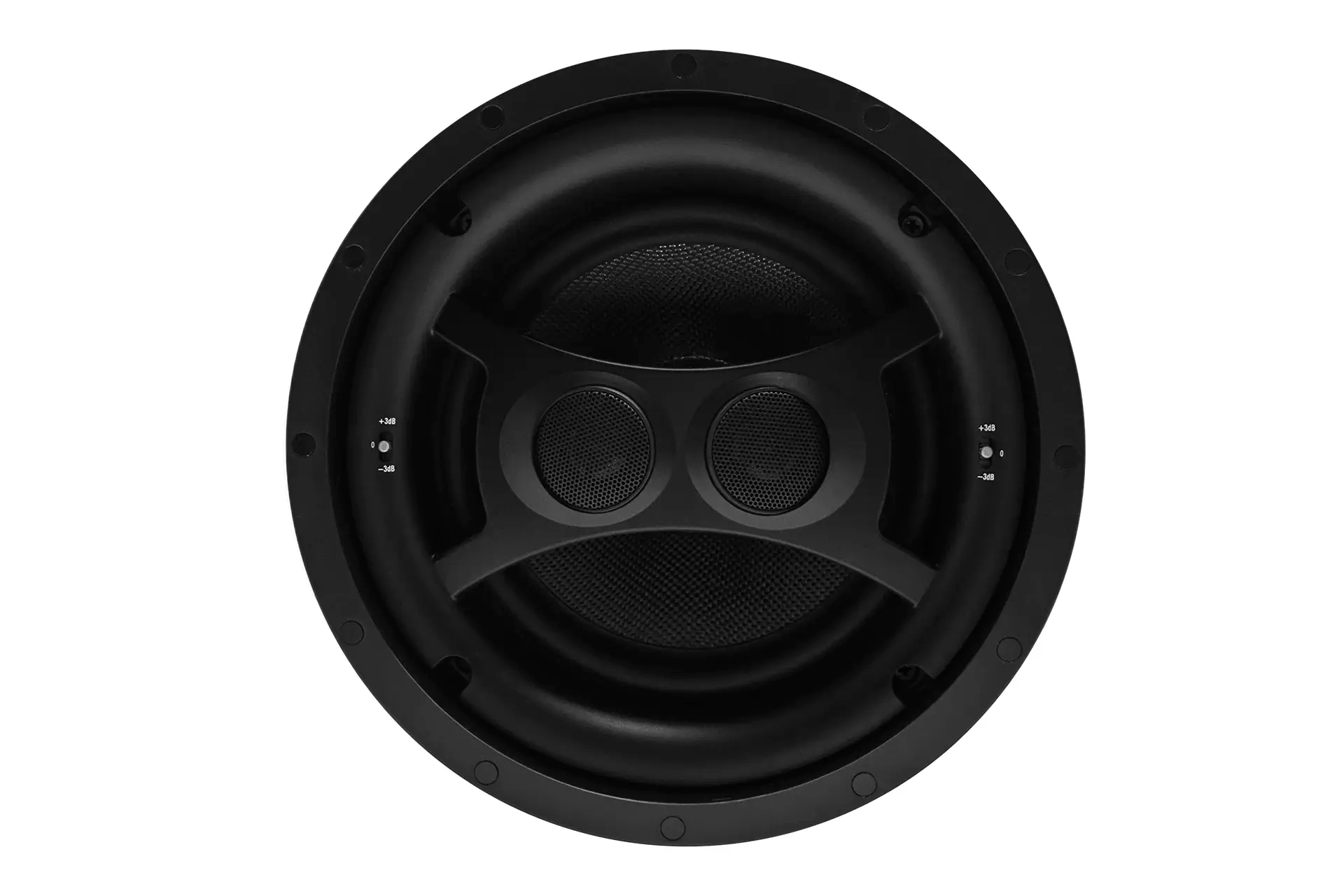

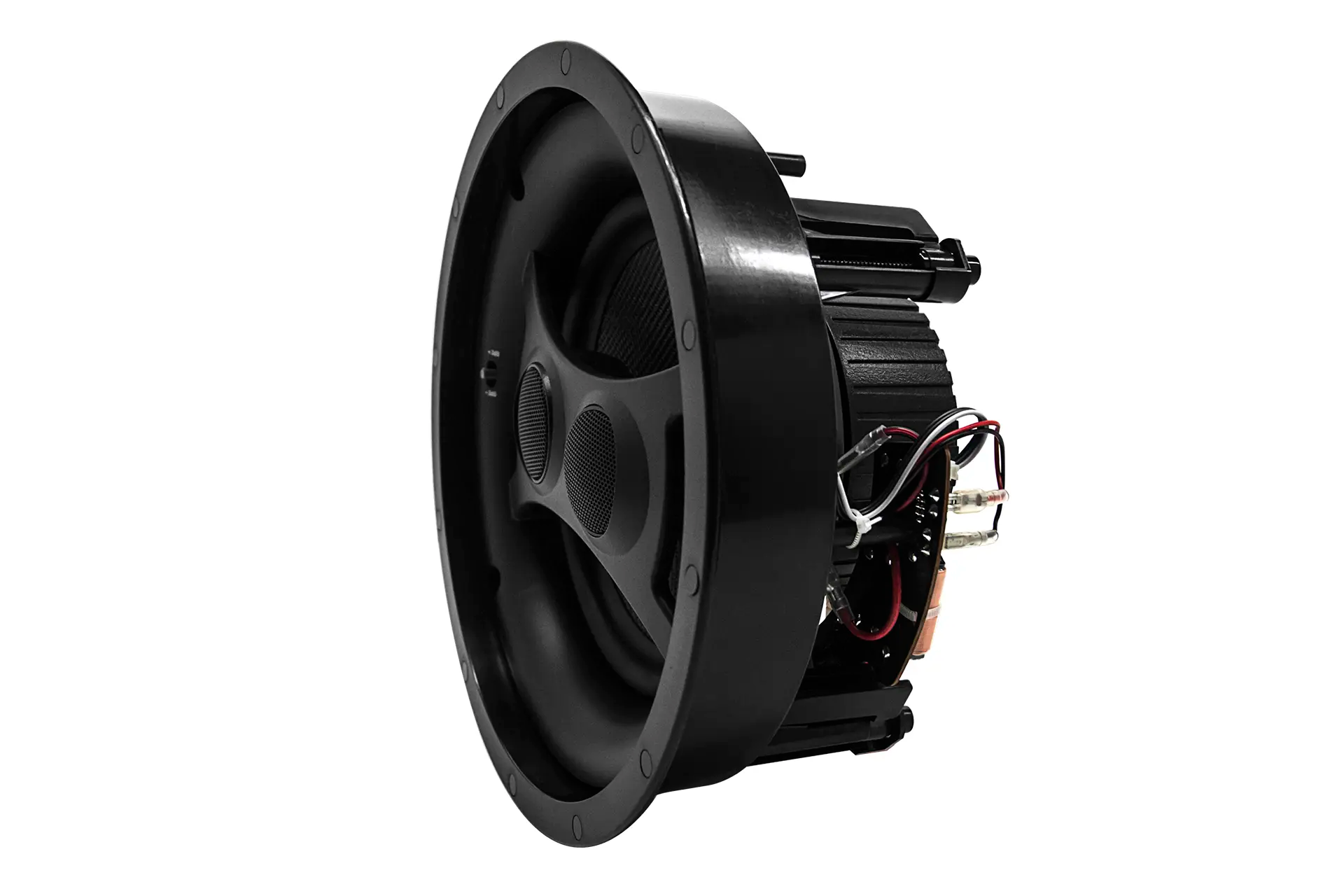

ECS-8D In-Ceiling Speaker

Regular price £242.46
Regular price Sale price £242.46
Prices include tax in EU & UK. Shipping calculated at checkout.
Sold per piece.

All the excellence of the Edgeless line! Now in a single point dual input stereo speaker.  Enjoy rich stereo sound from just one speaker.

The Edgeless series of In-Wall & In-Ceiling speakers are the perfect union of aesthetics and performance. Graceful, timeless design blends seamlessly into any decor adding an aura of elegance.

Built entirely without compromise using exclusive materials and designed to last a lifetime. Space Age polymer chassis, silk tweeters and  ballistic grade black kevlar cones ensures high quality and extended durability.

Until now frameless speakers have traded performance for aesthetics due to reduced speaker depth inherent to frameless designs. Our dedicated engineers have now overcome these limitations  using core patented Earthquake technology. An advanced fusion of XLT-geometry and SWS (Shallow Woofer System) technology unveil a performance level previously thought impossible from this type of speaker.

To ensure perfect integration in any room the Edgeless series have +/- 3dB adjustment switches to tailor the acoustics and magnetically removable paintable grills for color matching.

Turn your living space into a luxury audio salon, equally suited for high end audio or all out home theater. Enjoy  the discreet confidence of audio excellence offered by the Edgeless Series.

Note: If used in Saunas or swimming/bathing facilities with water vapor condensing directly on the grill, rust might form over time. This is harmless and grill can be replaced for a like-new appearance.

SKU: ECS-8D
EAN: 0068975900824
Regular price £242.46
Regular price Sale price £242.46

Specifications
Model Name: ECS-8D
EAN: 0068975900824

  • Enclosure: Impact Resist ABS Plastic
  • Frequency Response: 30Hz - 20kHz
  • MAX Power: 450W
  • Midbass: One 8" (203mm) low mass stiff kevlar cone midbass
  • Nominal Impedance: 4 Ohm (in Bipole Mode), 8-Ohm (in Dipole Mode)
  • Sensitivity: 88dB @ 1W/1M
  • Tweeter: Two 1" silk dome swiveling NEO tweeters

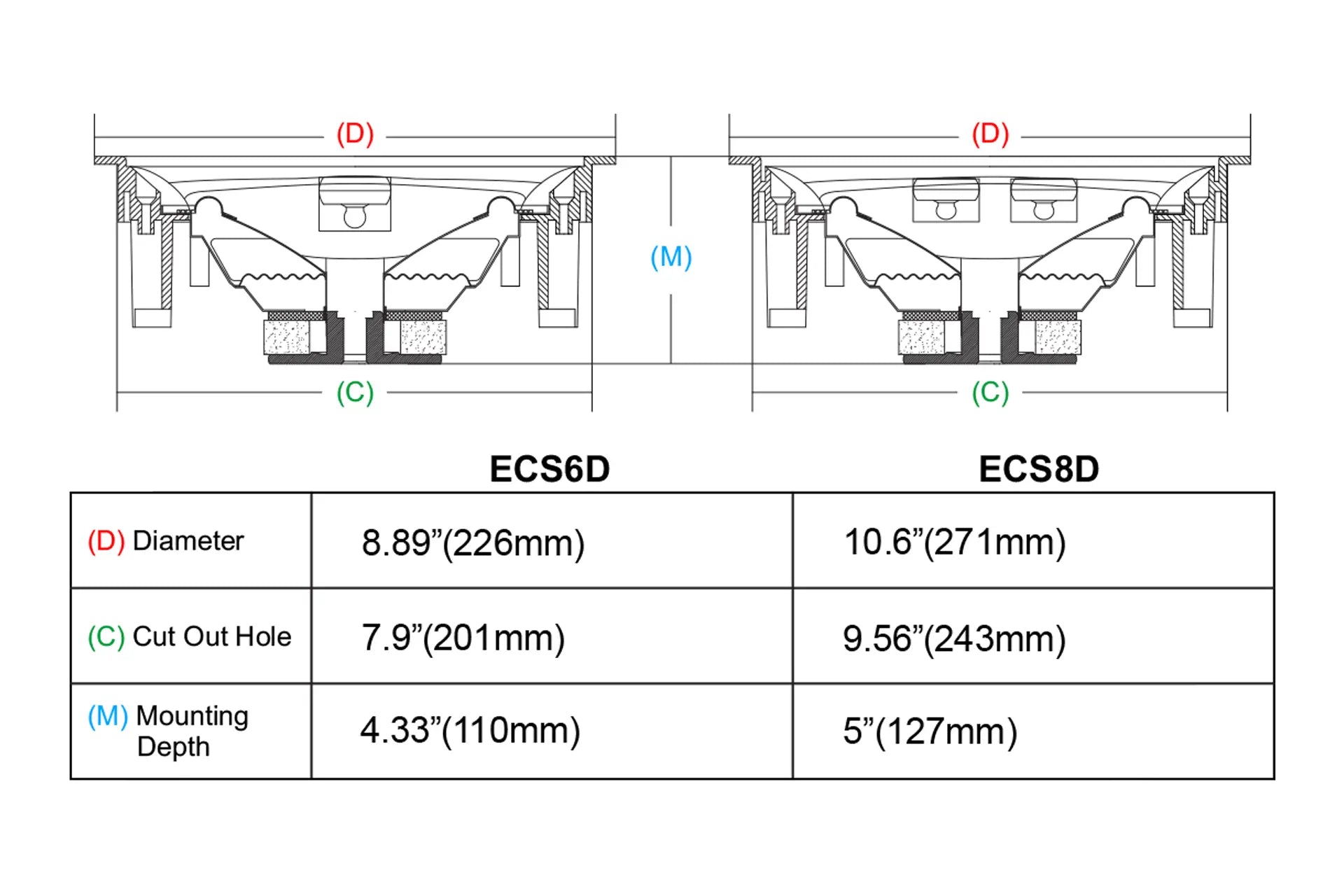

Dimensions

  • Diameter: 271 mm
  • Cut out hole: 243 mm
  • Mounting Depth: 127 mm

Box Dimensions: N/A
Box Weight: 3.15 kg

  • *Optional* Square Grill
  • *Optional* Wood Back Box suitable for installing In-Ceiling Speakers
  • ± 3dB bass and treble controls

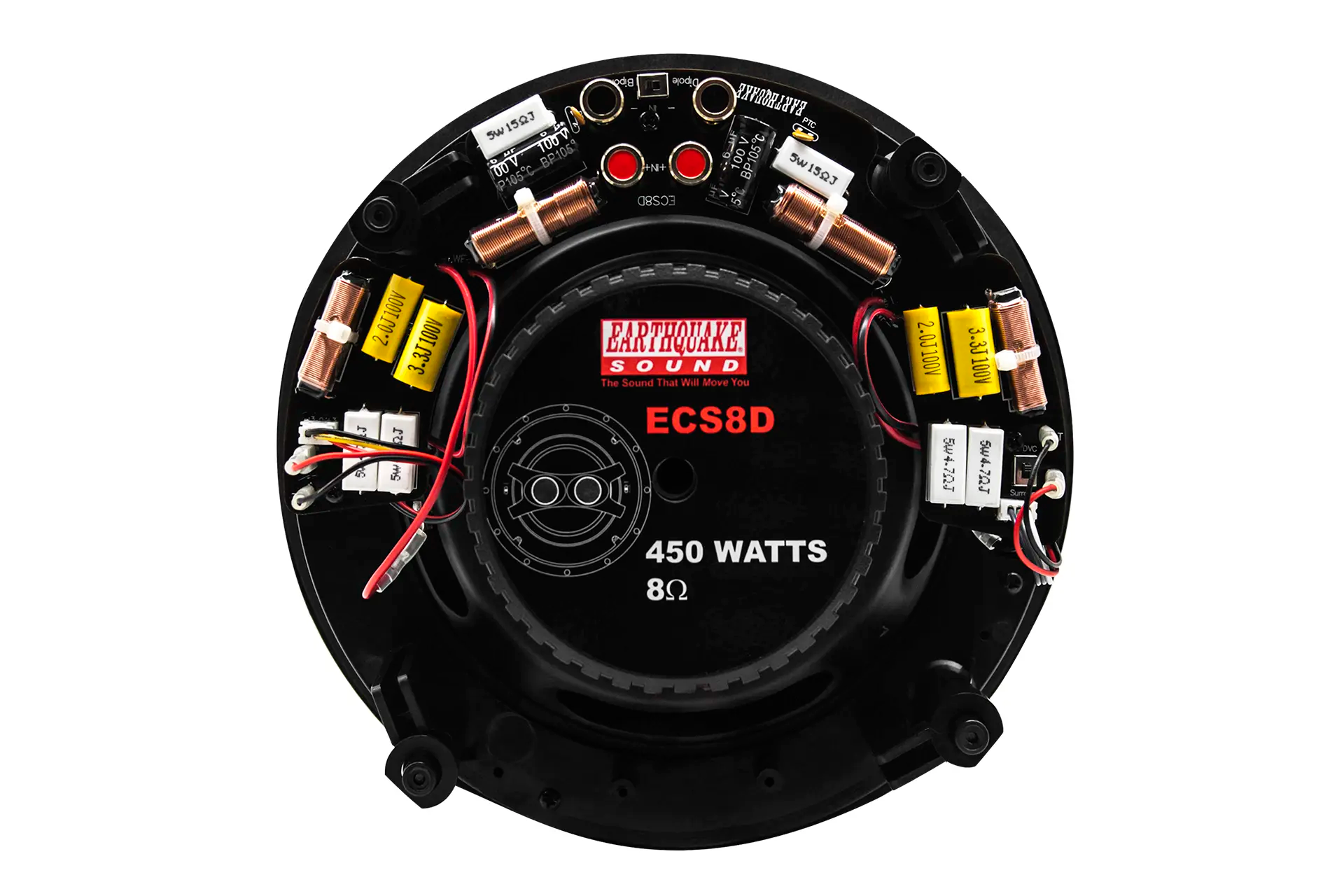

  • 12 dB/Octave filter network crossover with polyswitch protection
  • Dipole/Bipole modes
  • Dual voice coil woofer
  • Easy to use Turn ‘N’ Lock installation mechanism
  • Frameless design for reduced visibility/seamless blend
  • Gold plated
  • Low mass stiff kevlar cone bodies for a very smooth accurate and detailed sound reproduction

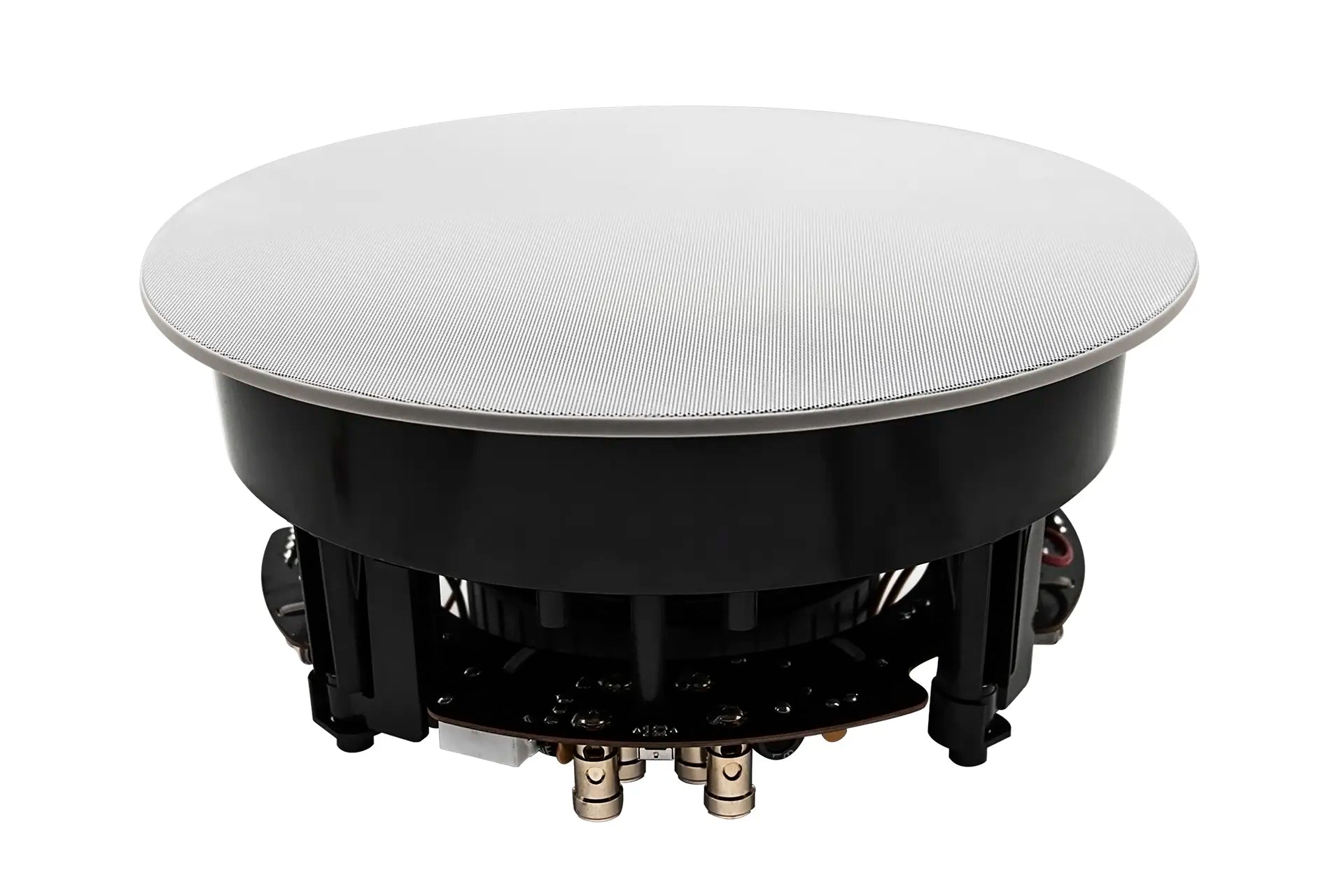

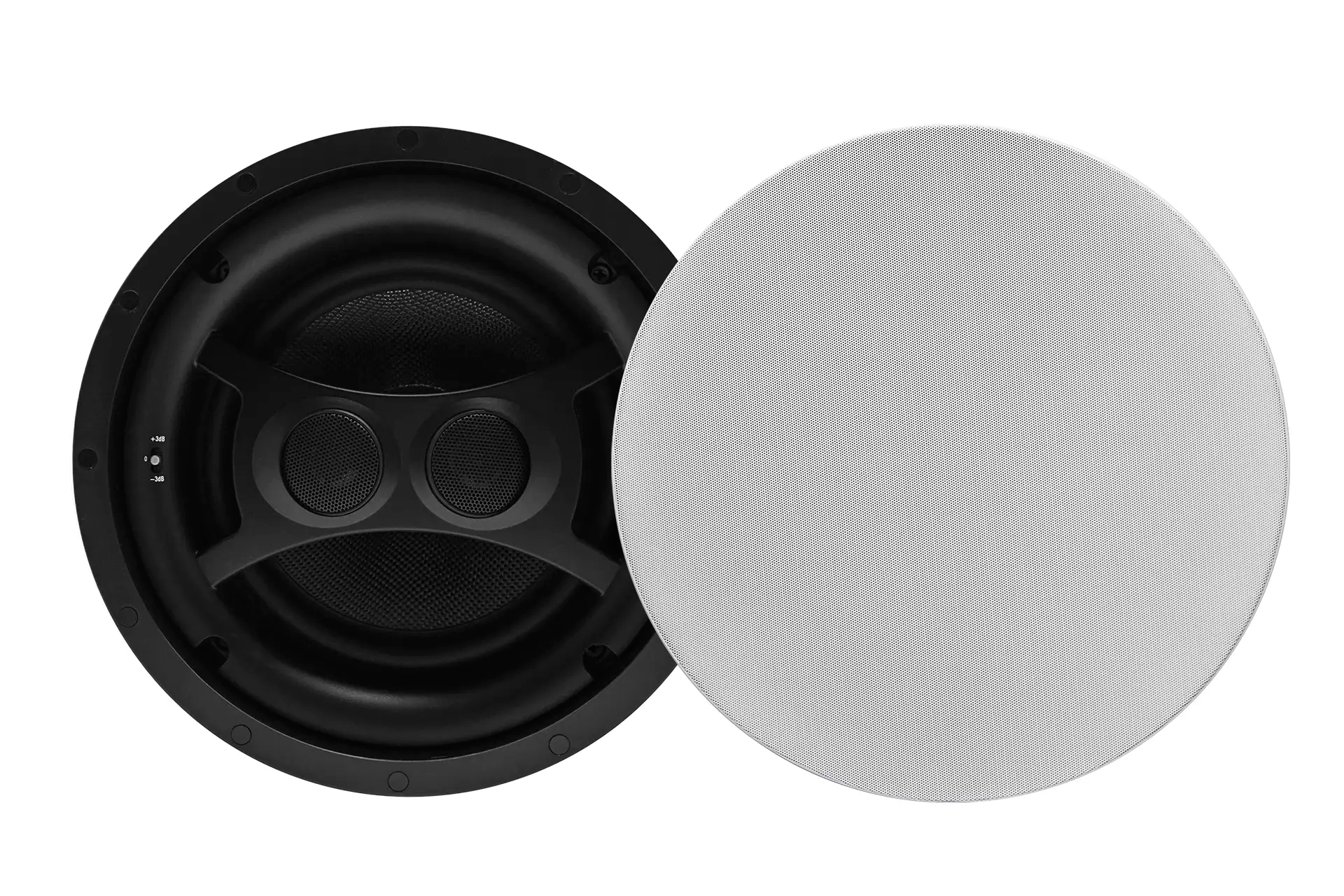

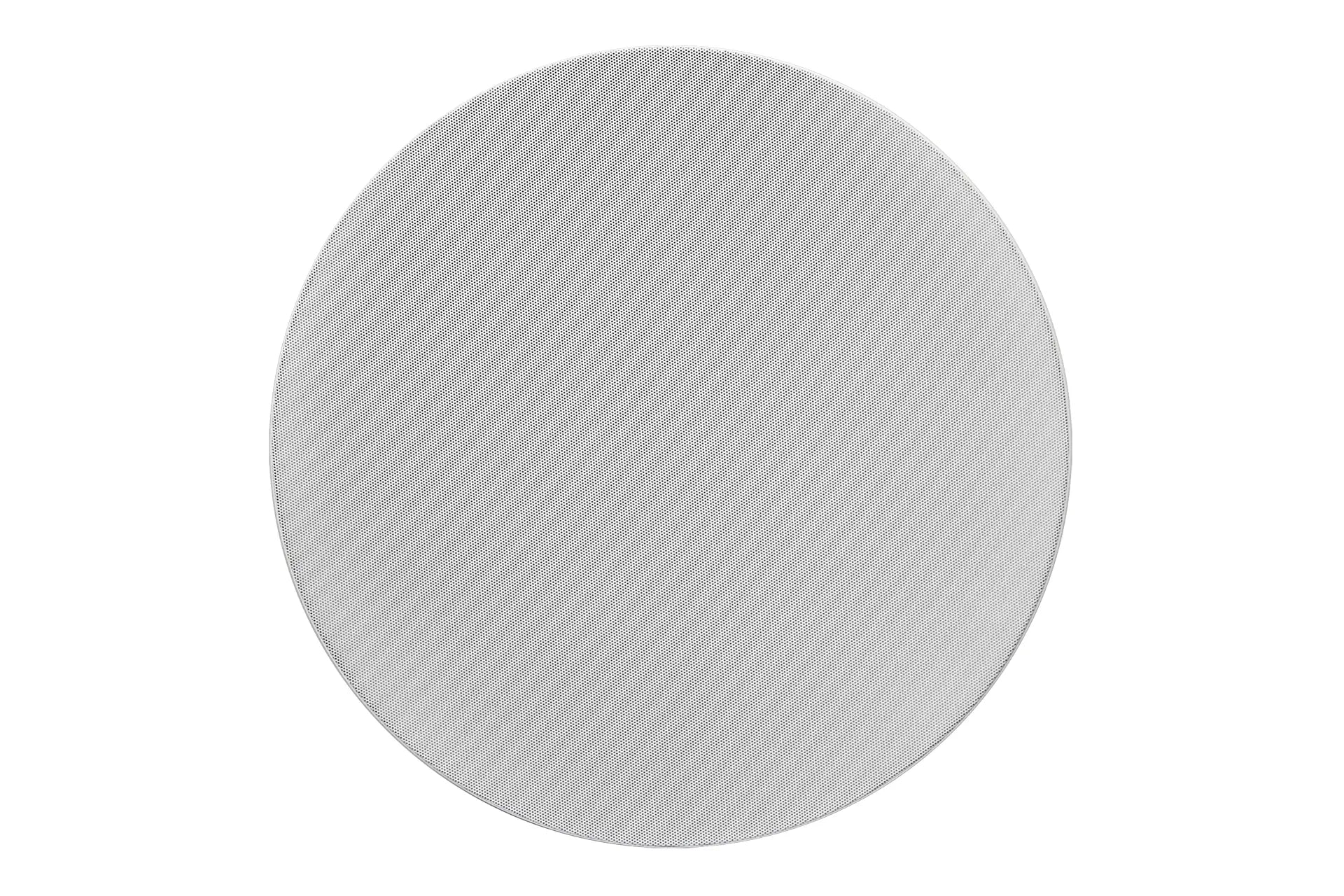

  • Magnetically attached and paintable grilles

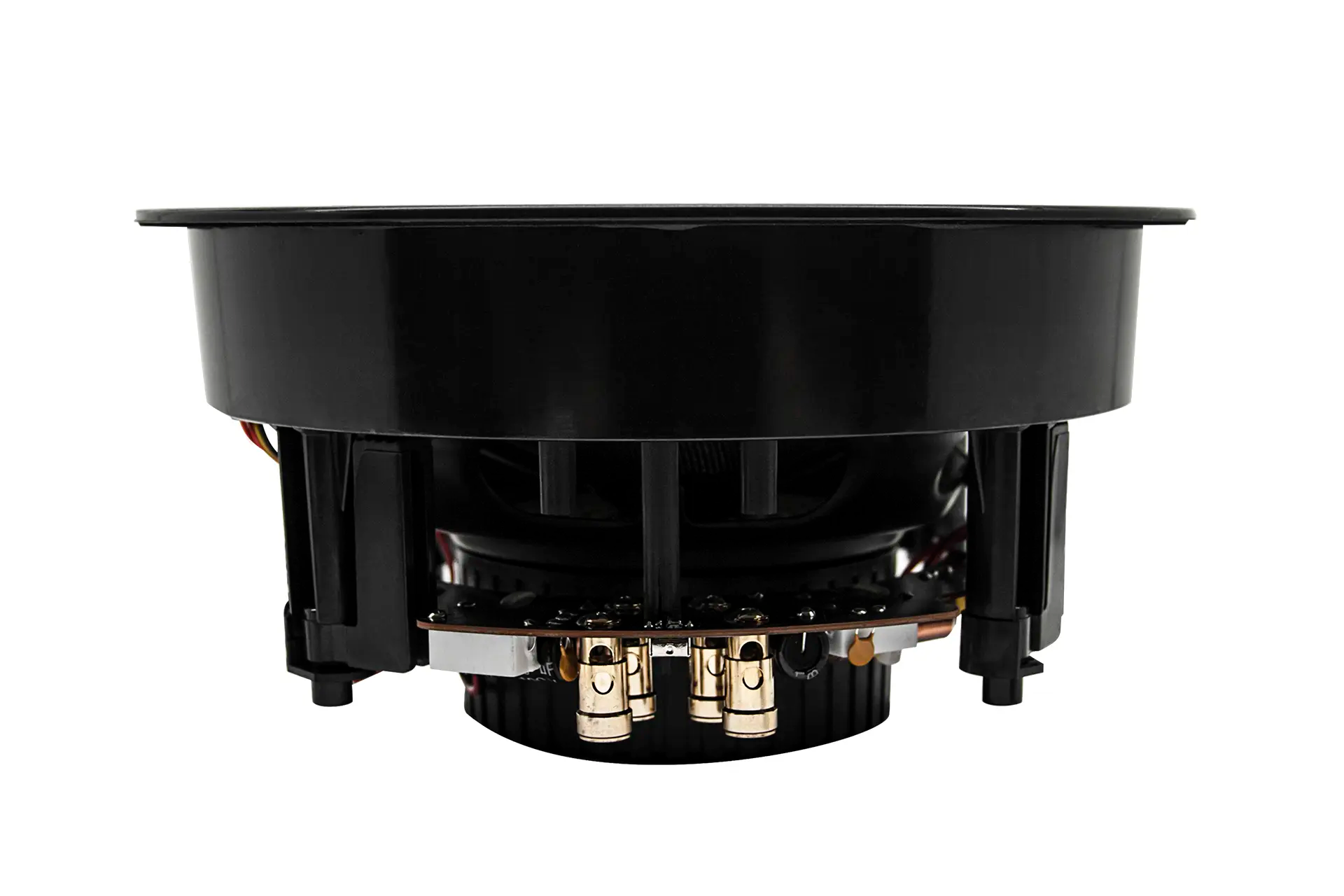

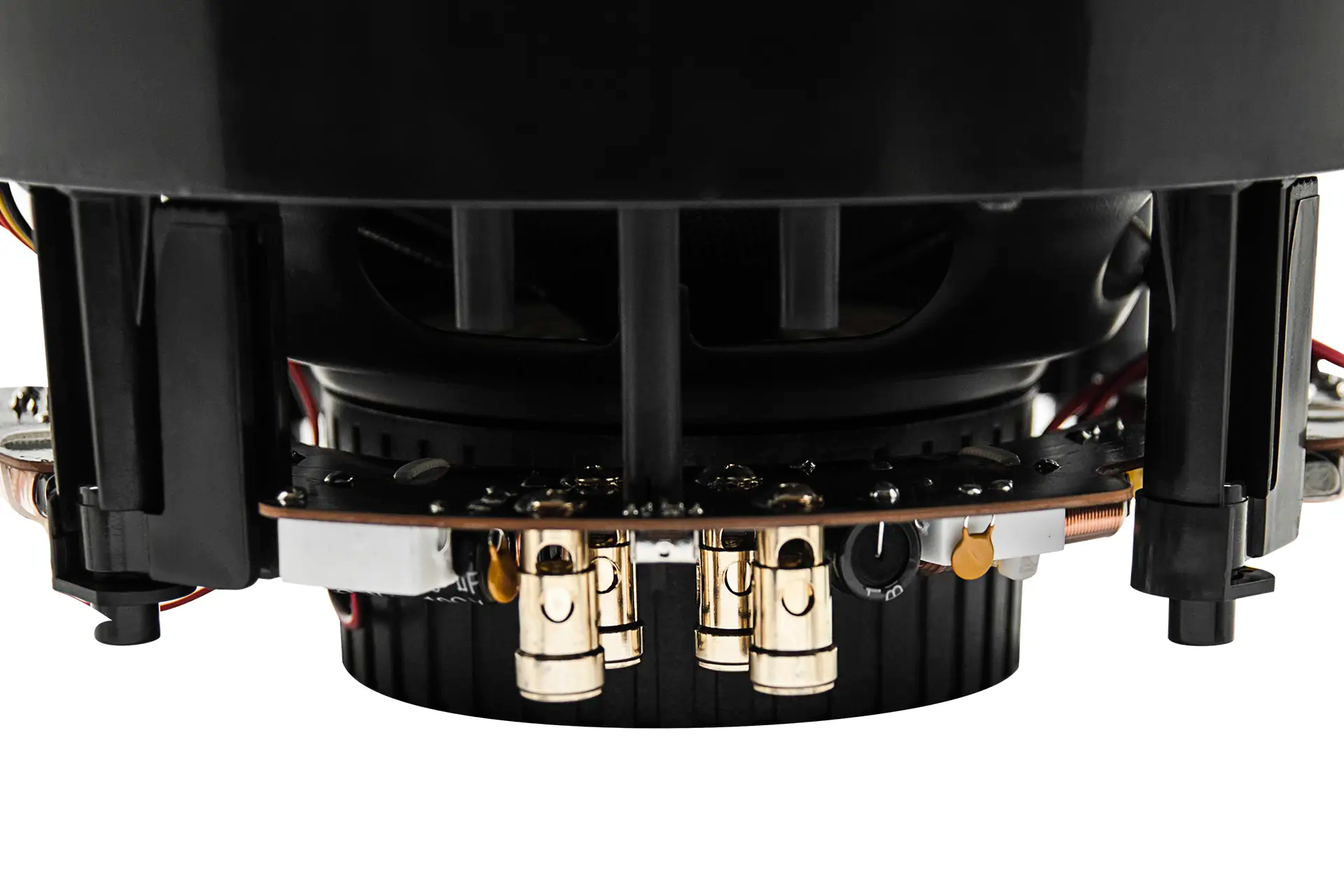

  • Spring Loaded Terminals
  • Surround / DVC modes
  • Two 1" (25mm) silk dome NEO swiveling tweeters
