EQ-800-NEO

Sold per piece.

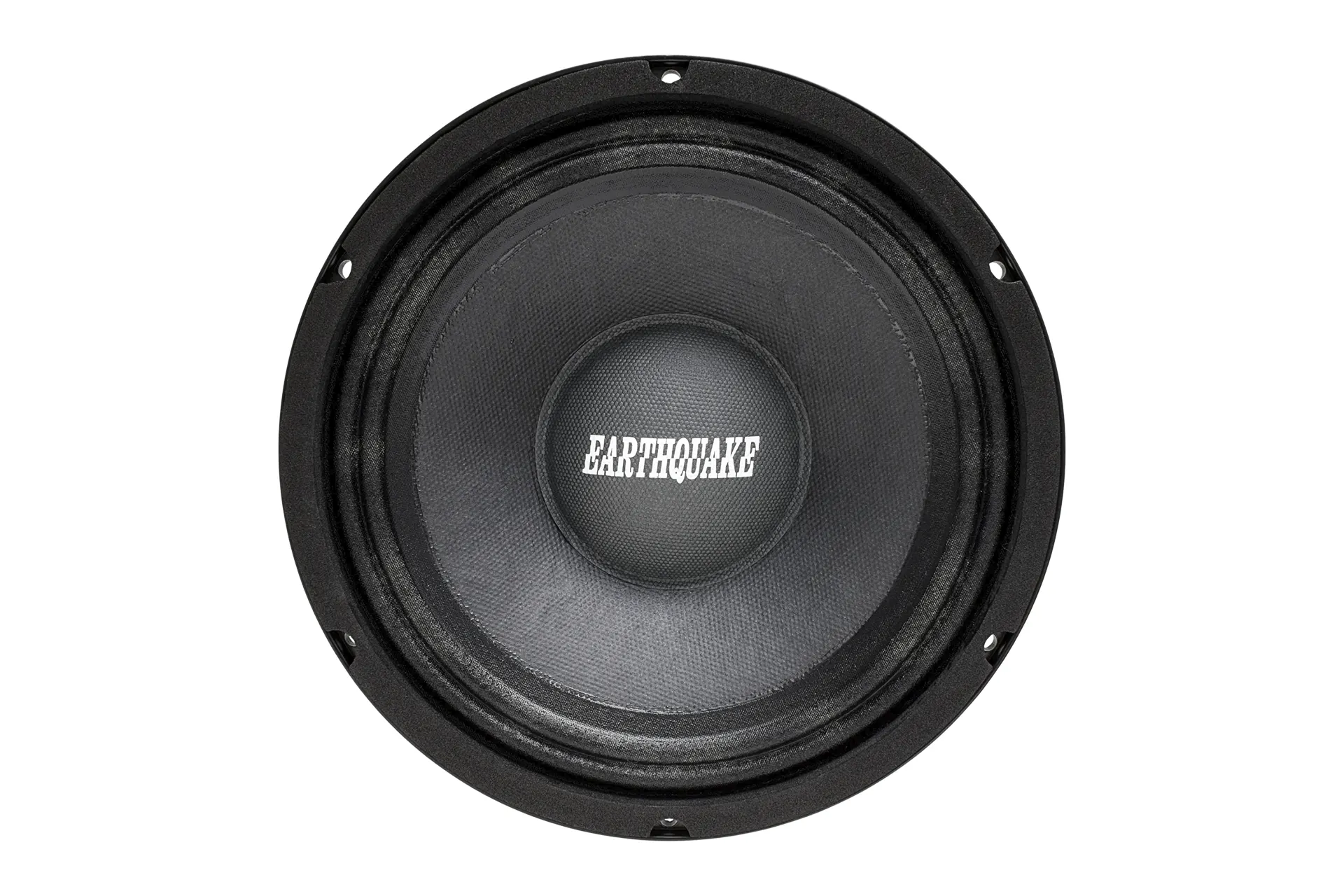

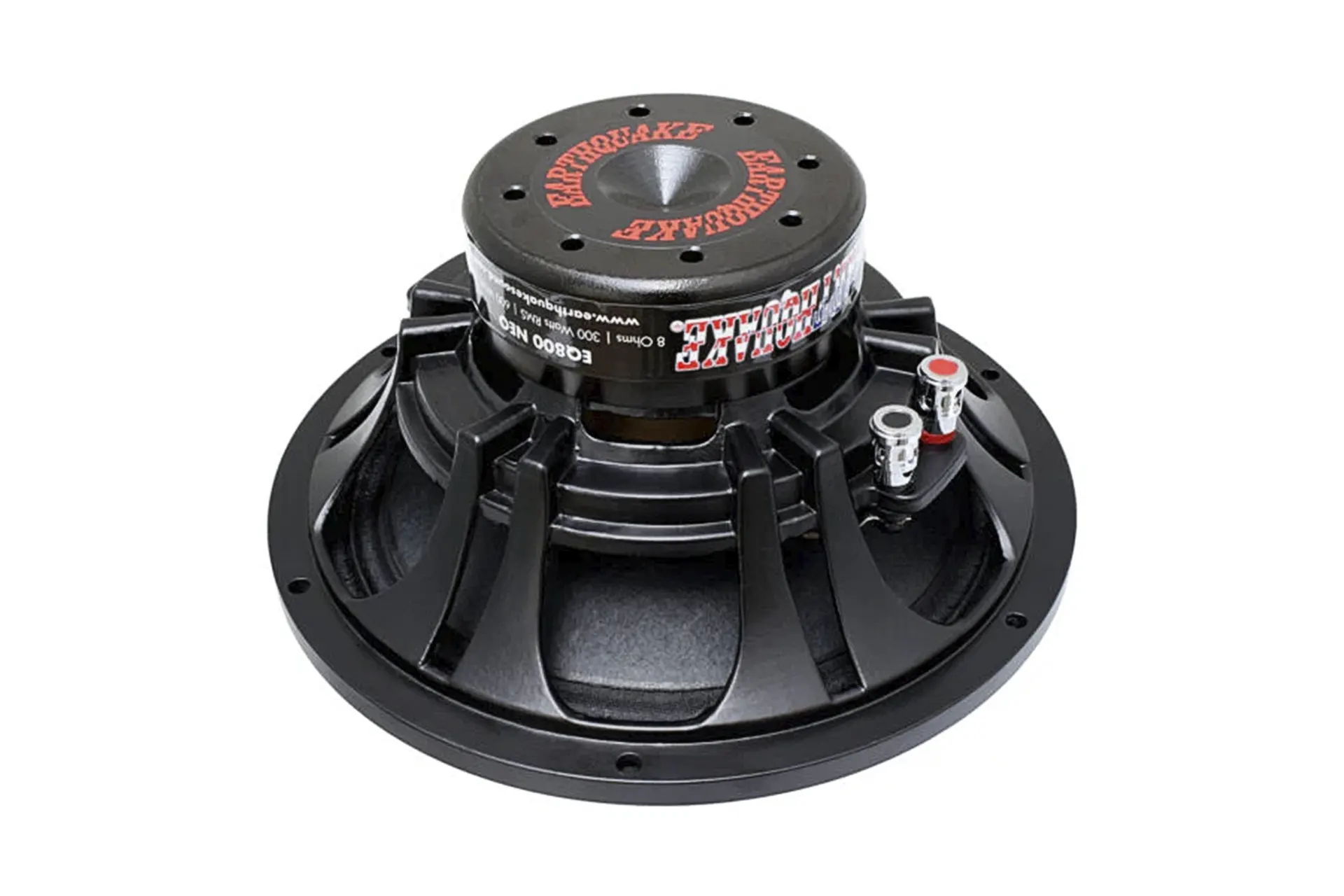

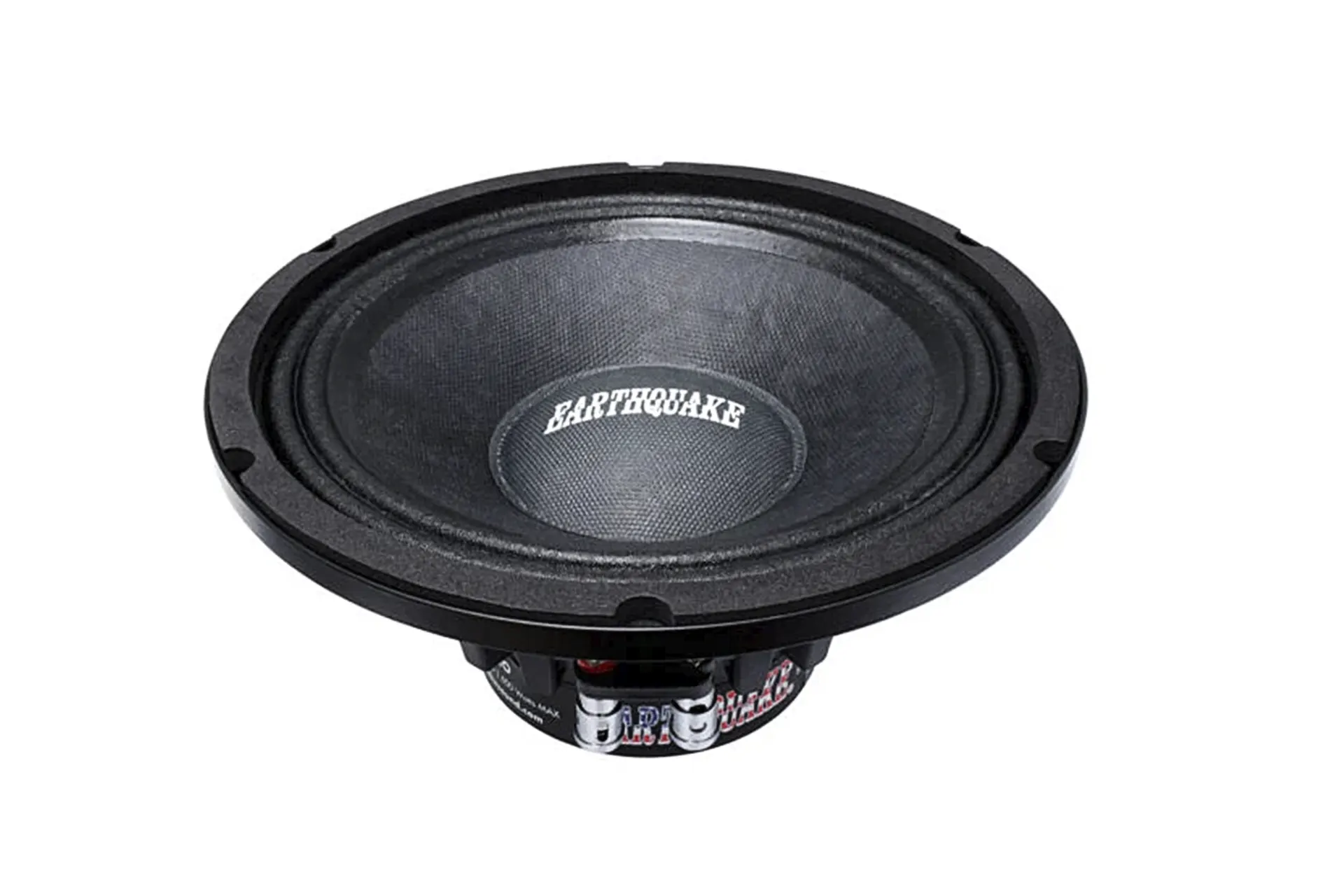

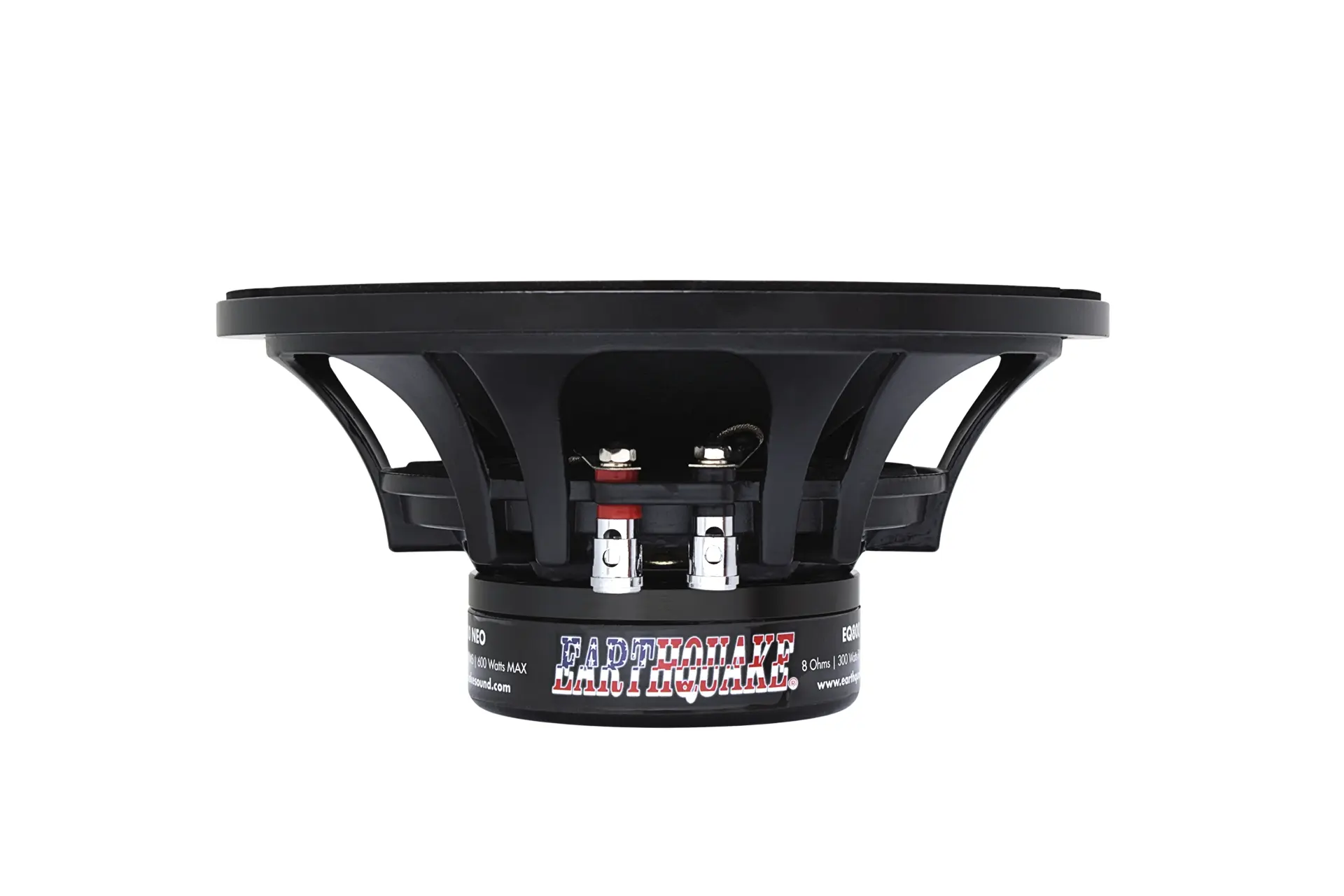

EQ-800-NEO Professional Midrange/Midbass Driver

Power and reliability for the most demanding situations; the 8 inch Earthquake Sound EQ800 NEO cloth speaker series of maximum musical output drivers are specifically designed to provide a smooth and low-distortion midrange/midbass output for the highest quality sound reinforcement applications.

Because of their relatively high resonance and very low Qts values, the EQ NEO series can be mounted in small enclosures while maintaining a smooth, peak-free response. As the name suggests, this series features a smaller yet powerful neodymium motor that increases efficiency and decreases their overall weight.

SKU: EQ-800-NEO
Collections:
£0.00
£0.00

Specifications:

  • Model Name: EQ-800-NEO
  • EAN:
  • Speaker Size: 8" (203mm)
  • Nominal Impedance: 8 Ohm
  • Power Rating RMS: 300 Watts
  • Power Rating MAX: 600 Watts
  • Resonance: 87Hz
  • Frequency Response: 87Hz–6kHz
  • Sensitivity: 97dB 2V/1M
  • Voice Coil Diameter: 2.5" (63mm)

Thiele Small Parameters:

  • Fo (Hz): 87Hz±15%
  • Revc (Ohm): 3.600
  • Qms: 2.157
  • Qes: 0.273
  • Qts: 0.233
  • Vas (Ltr): 12.752
  • Cms (u M/N): 182.761
  • Mmd (m Kg): 16.000
  • Mms (g): 17.898
  • BL (TM): 11.518
  • No: 3.076%
  • Sd (msqM): 23.167

Dimensions:

  • Overall Diameter: 8.26" (210mm)
  • Overall Depth: 3.75" (95mm)
  • Mounting Depth: 3.43" (88mm)

Features:

  • Available in 6.5, 8, and 10 inch sizes
  • Maximum musical output
  • Copper voice coil
  • Powerful neodymium motor
  • Long lasting non-pressed paper cone
  • Multi-roll cloth surround
  • Die cast aluminum multi-vented basket
  • Spring-loaded terminals

EQ Neo Series Manual (ENG)
