Discontinued Tag

By Earthquake Europe

Image-C25X

Sold per piece.

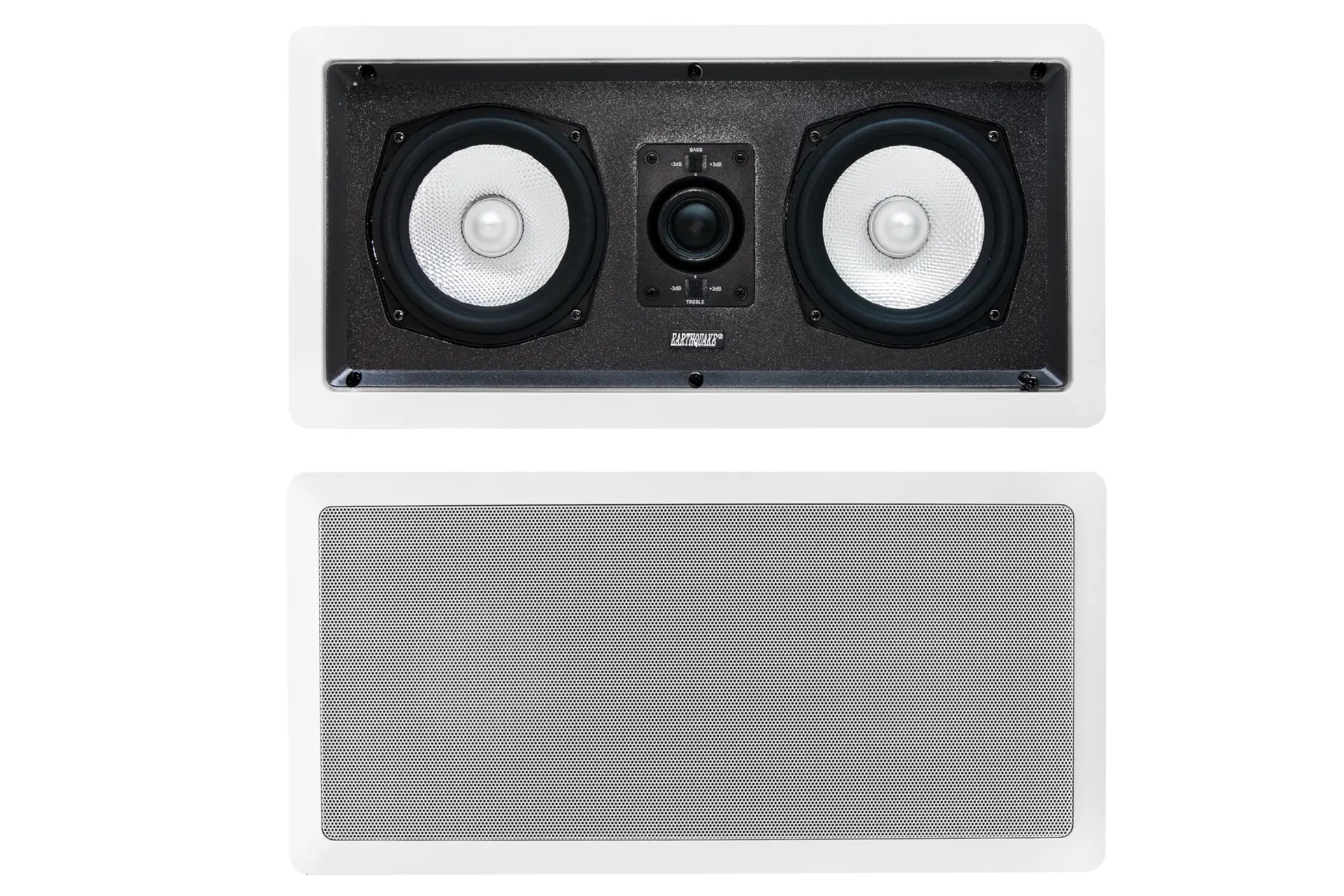

Image-C25 In-Wall System

Whether you install in a conference room or a high-end home theater, the IW Series will meet your expectations.

The market’s only Inwall speakers that sounds like real speakers.

£0.00

£0.00

Specifications
Model Name: Image-C25X
EAN: 0068975900404

Frequency Response: 50Hz - 21kHz
Midrange/bass: Two x 5 1/4" (133mm) Poly-fiber
Nominal Impedance: 8 ohm
RMS Power: 40-200W
Sensitivity: 93dB @1W/1M
Tweeter: 1" (25mm) adjustable silk dome

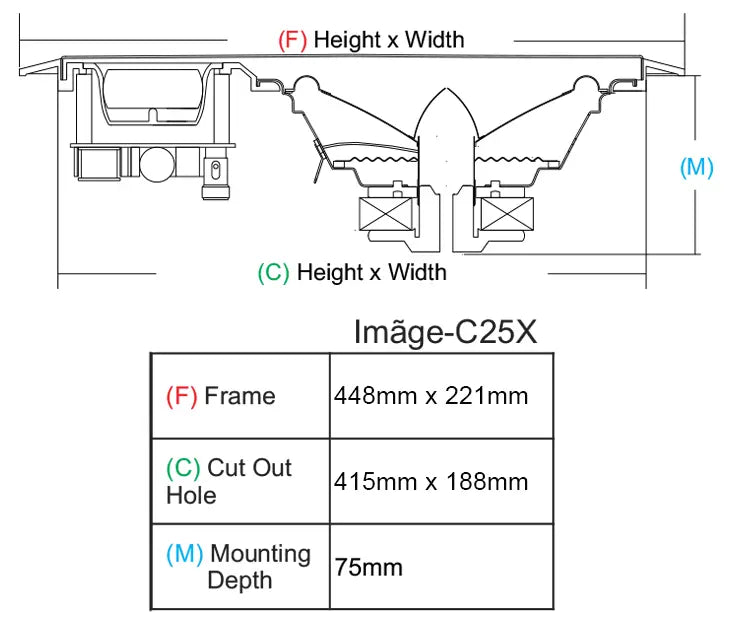

Dimensions

Height: 448 mm
Width: 221 mm
Cut out hole: 415 mm x 188 mm
Mounting Depth: 75 mm

Box Dimensions: 12 × 50 × 26 cm
Box Weight: 3.1 kg

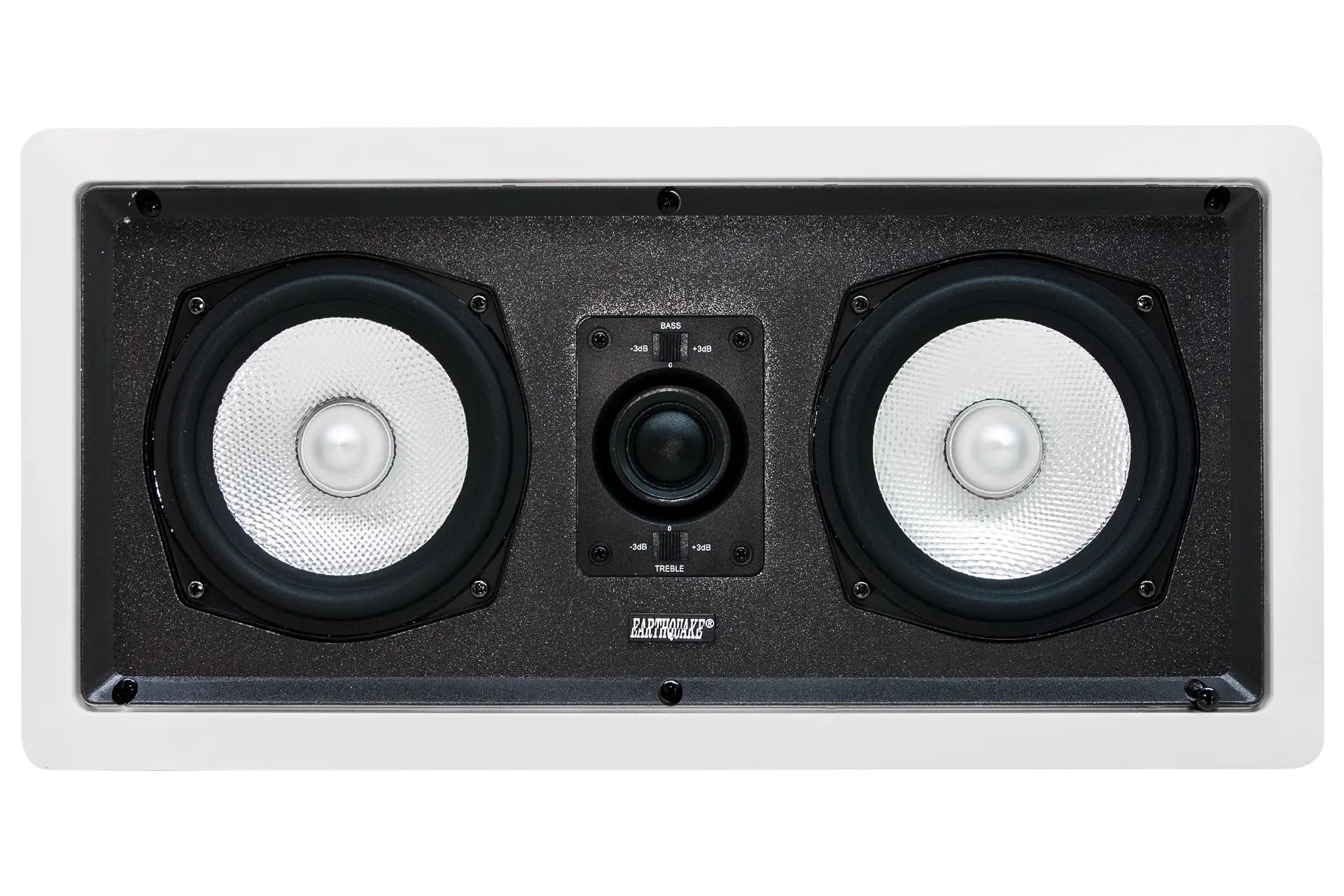

1" high definition swiveling silk dome tweeter with neodymium magnet
Corrective phase plug

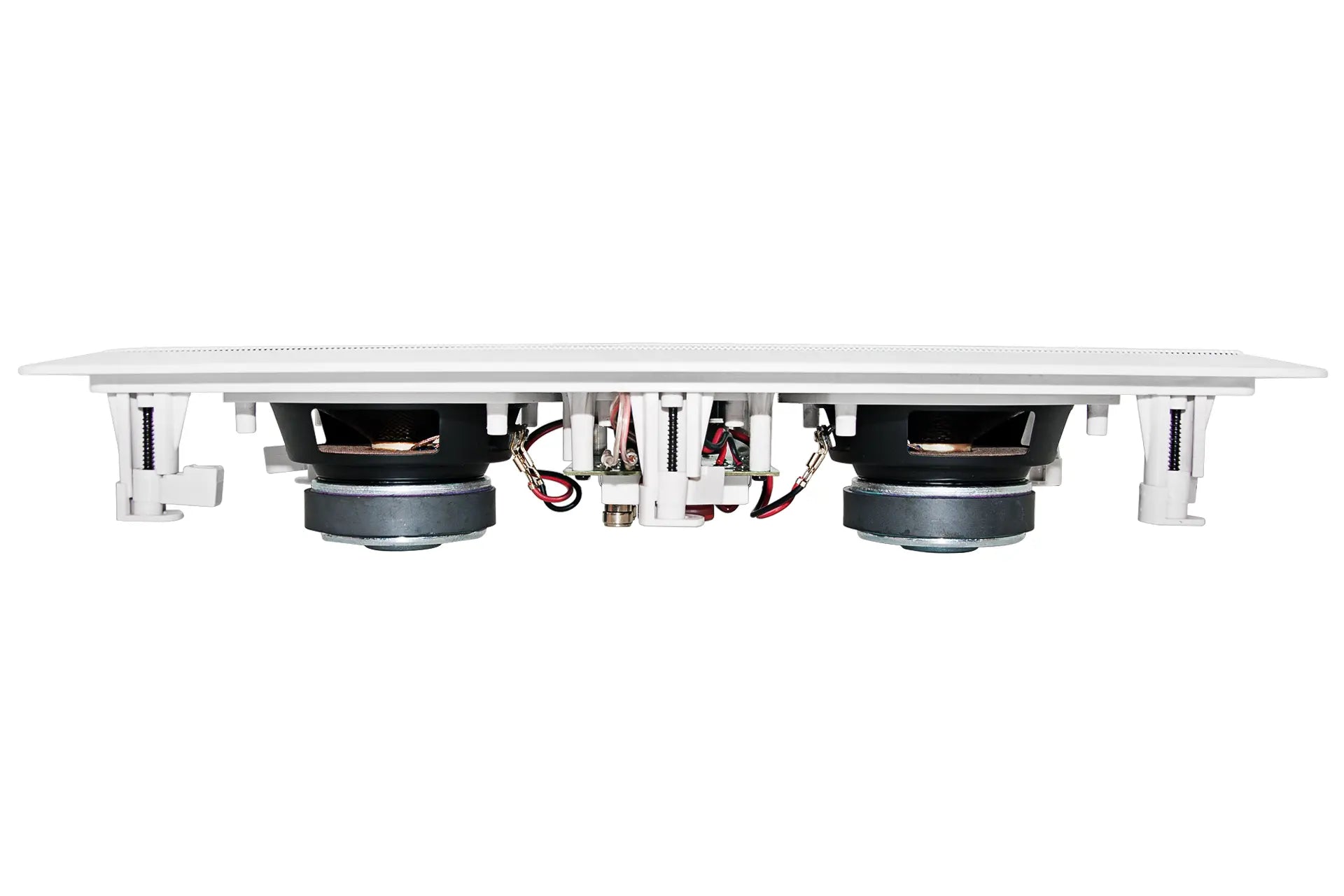

Easy-install "Turn-N-Lock™" mechanism
Finish: White / Paintable

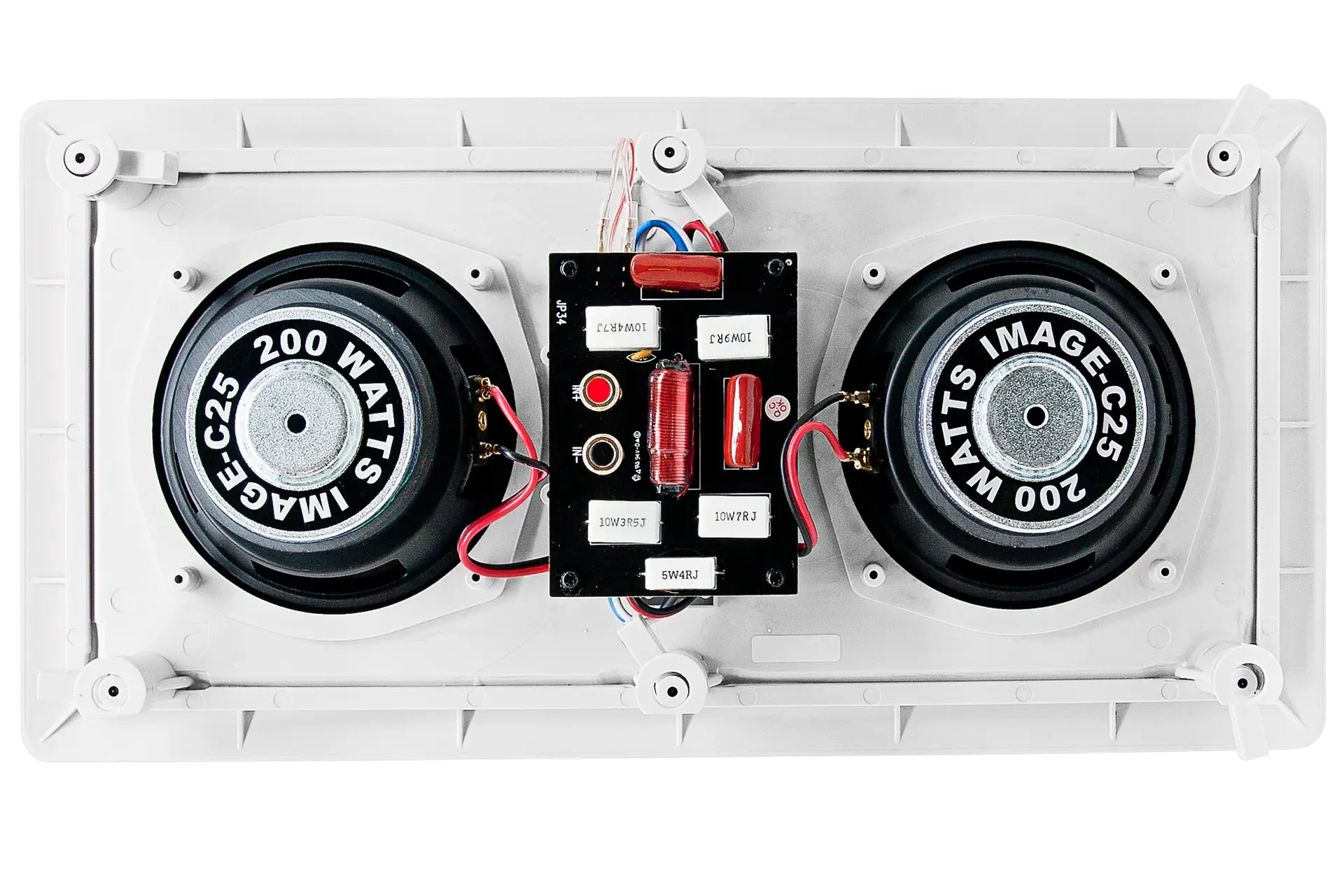

High pass at 3kHz 18dB/Oct

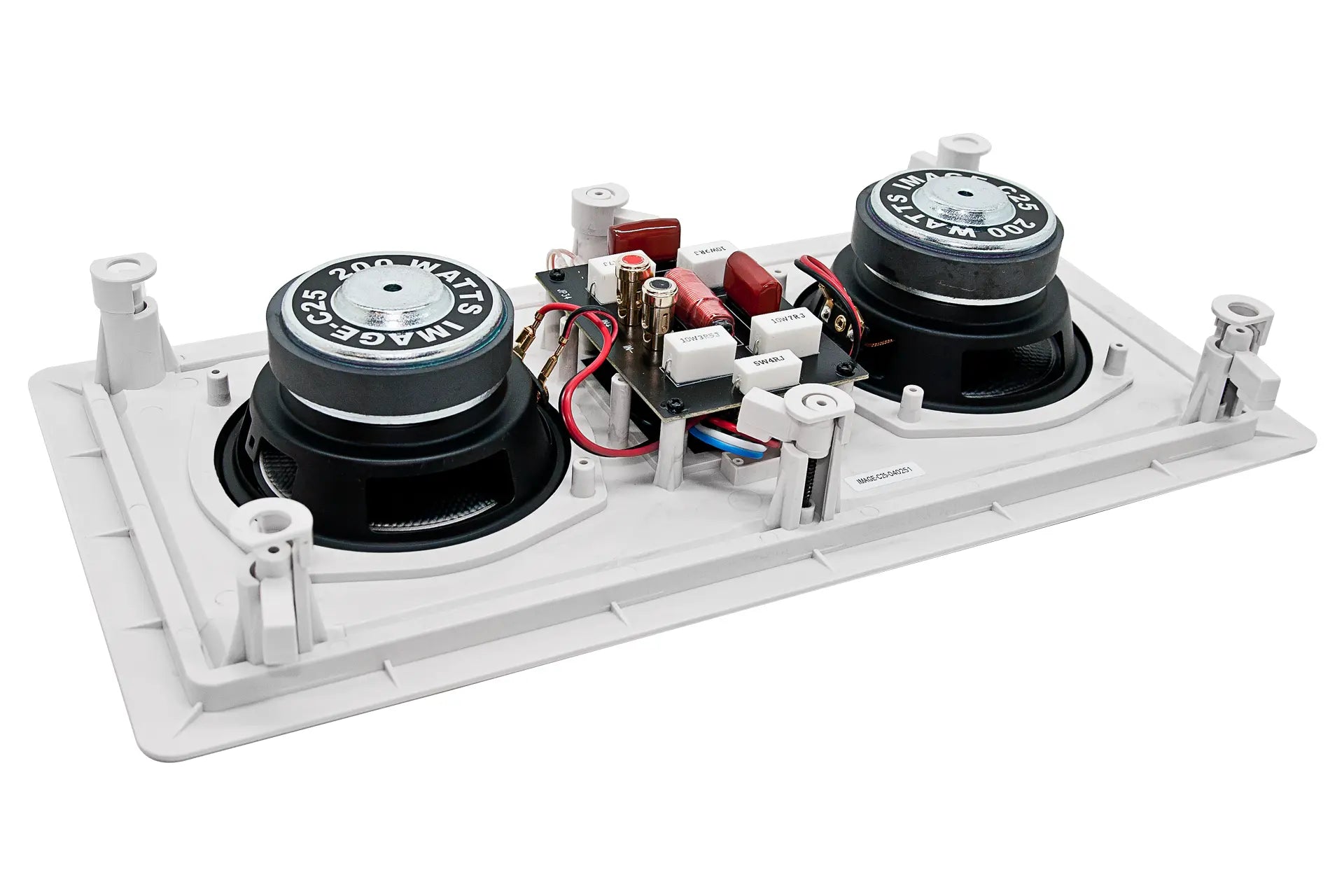

Long excursion woofers with poly injection cone and high grade voice coils
Low pass at 3kHz 18dB/Oct

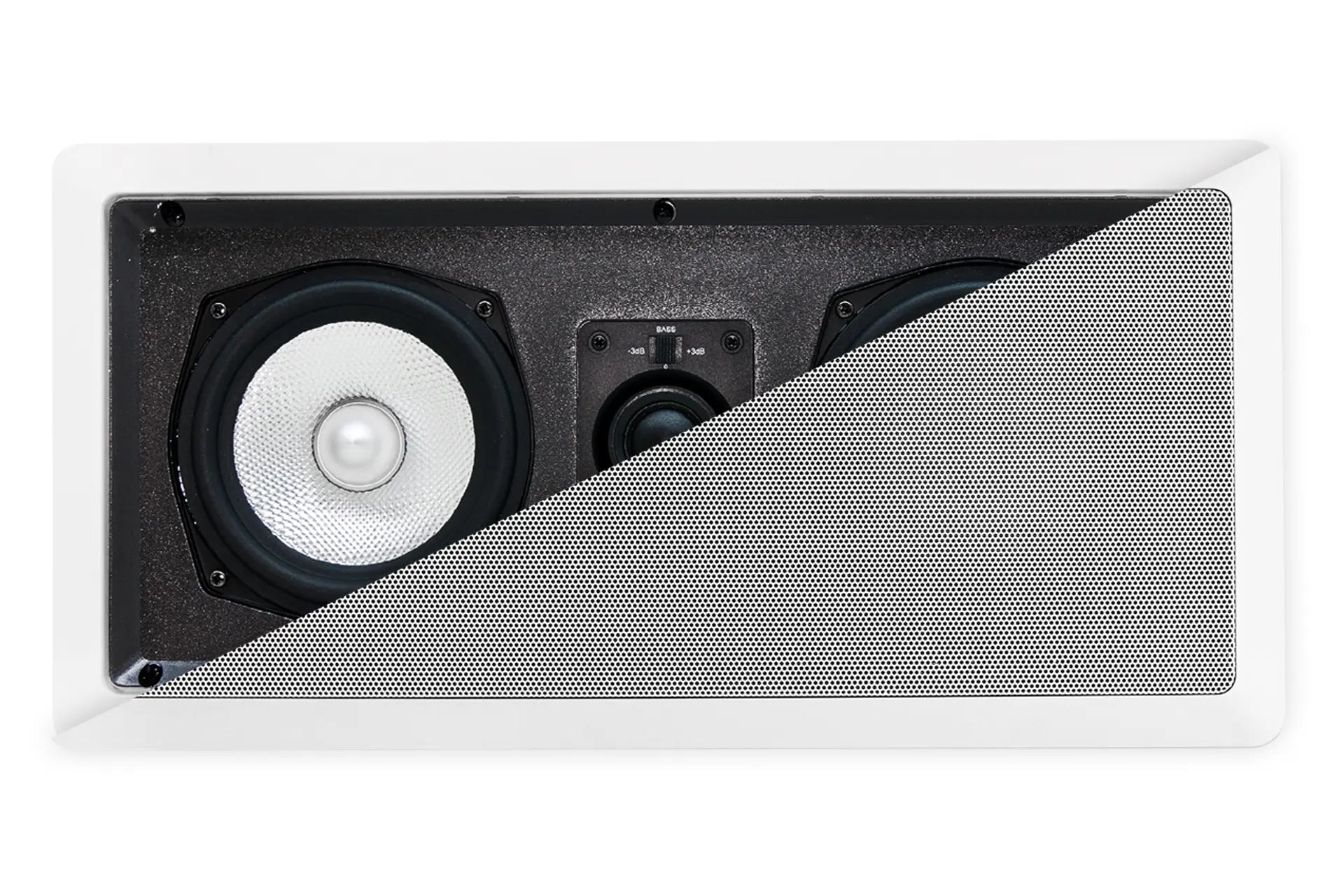

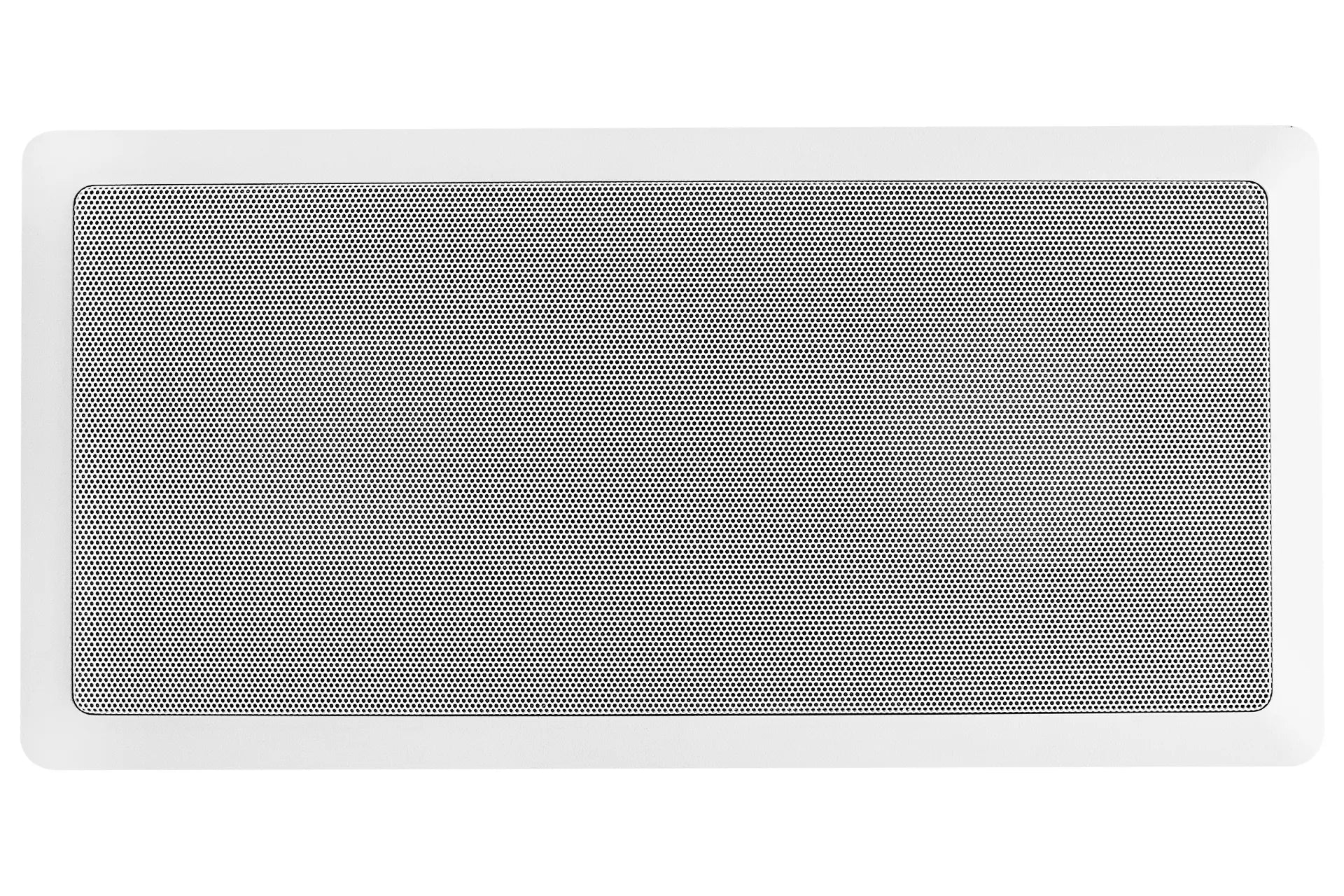

Paintable rust-proof aluminum grille
Switched ± 3dB tweeter level adjustment
Switched ± 3dB woofer level adjustment

Image-C25X Manual (ENG)

Image-C25X Cut-sheet (ENG)

Image-C25X Product Release (ENG)
