Image-846X

Sold per piece.

Image-846 In-Wall System

Earthquake engineers have spent countless hours perfecting the Imãge-846X so it can reproduce sound as if you are sitting center stage. With paintable grilles and frames, the Imãge-846X is the speaker of choice when you seek both performance and elegance in your in-wall speaker system.

£0.00

£0.00

Specifications
Model Name: Image-846
EAN: 0068975900107

Frequency Response: 30Hz - 22kHz

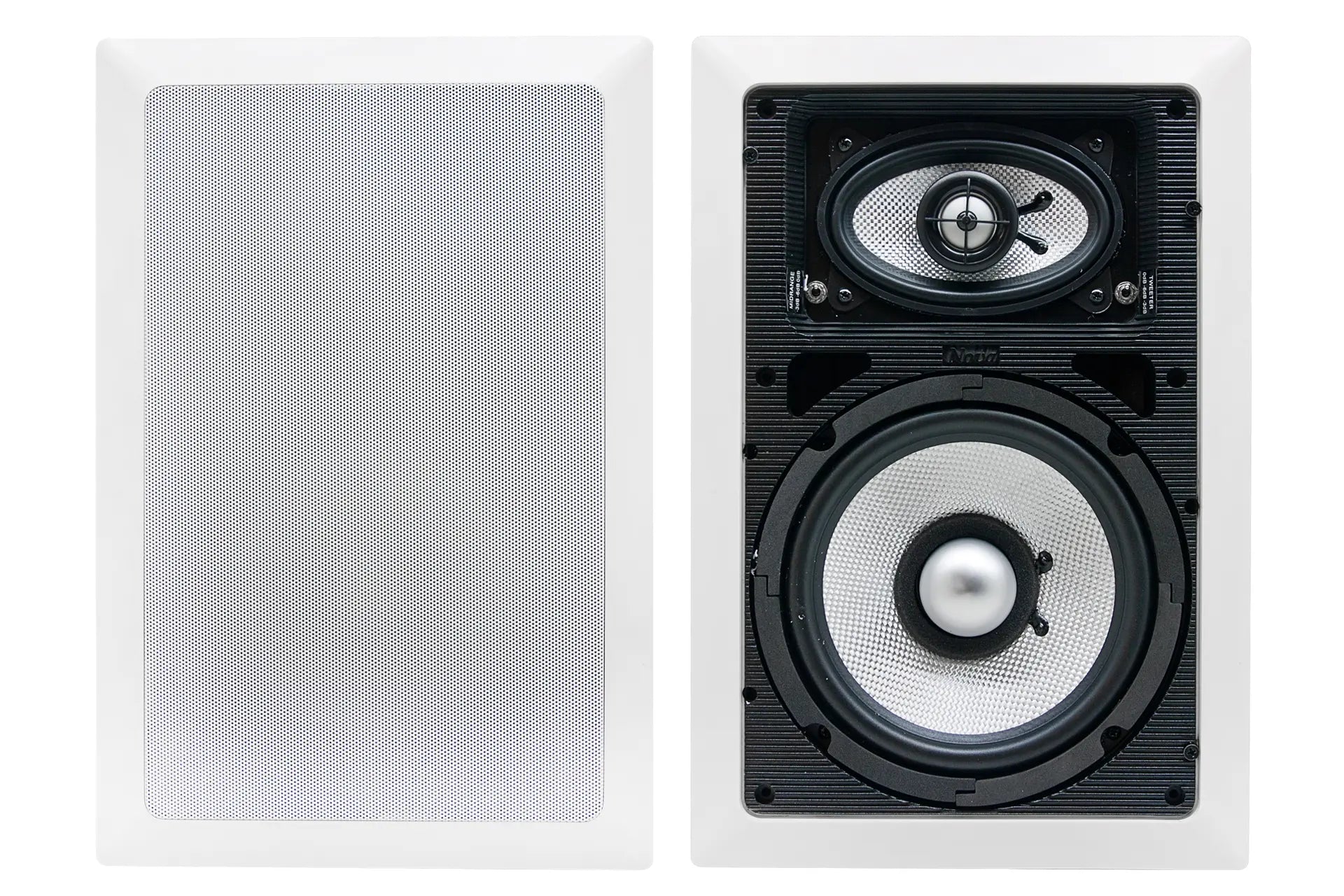

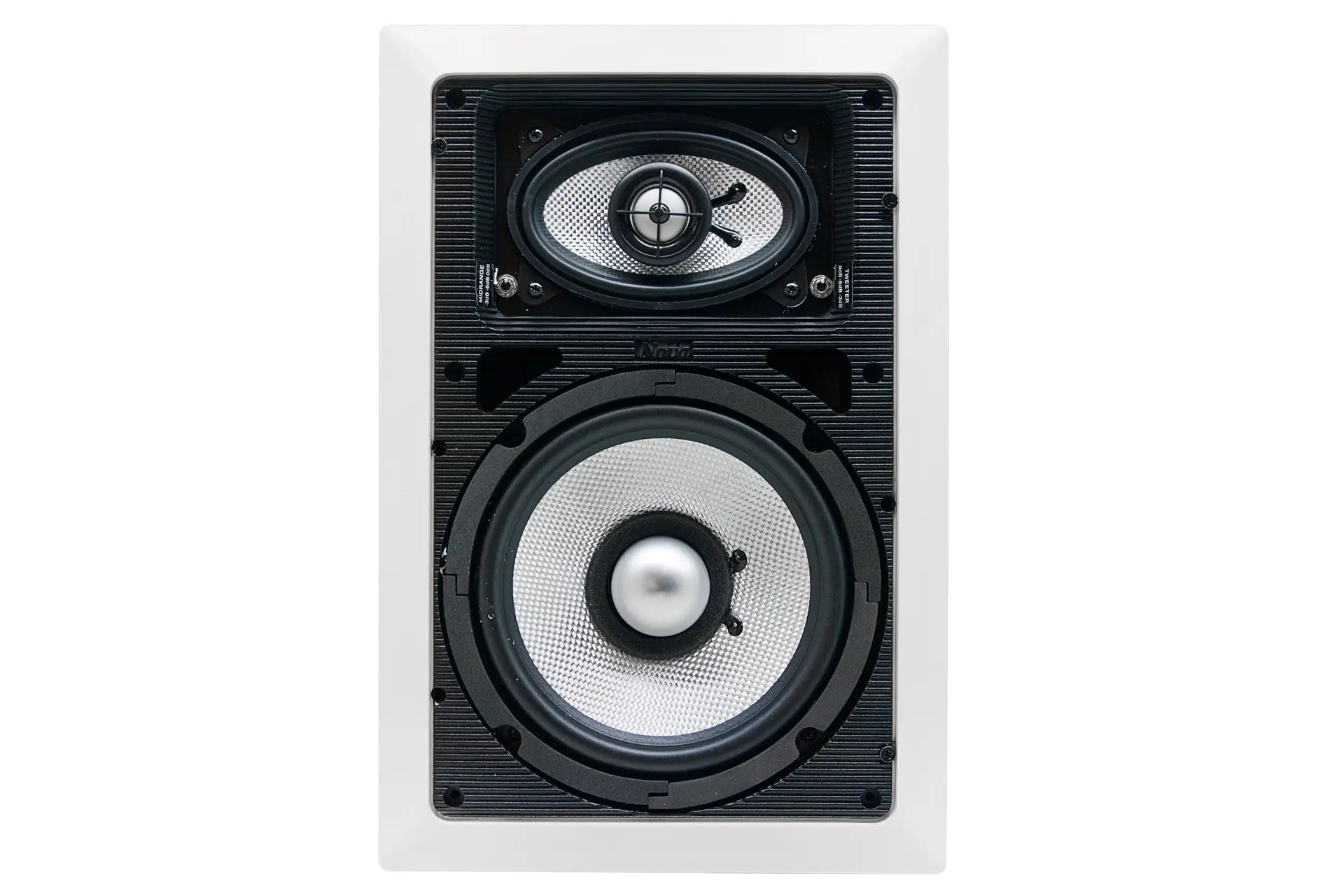

Midrange/bass: 4" x 6" (102mm x 152mm) Carbon fiber composite
Nominal Impedance: 8 ohm
RMS Power: 60-500W
Sensitivity: 93dB @1W/1M
Tweeter: 1" (25mm) adjustable silk dome
Woofer Size: 8" (203mm) Carbon fiber composite

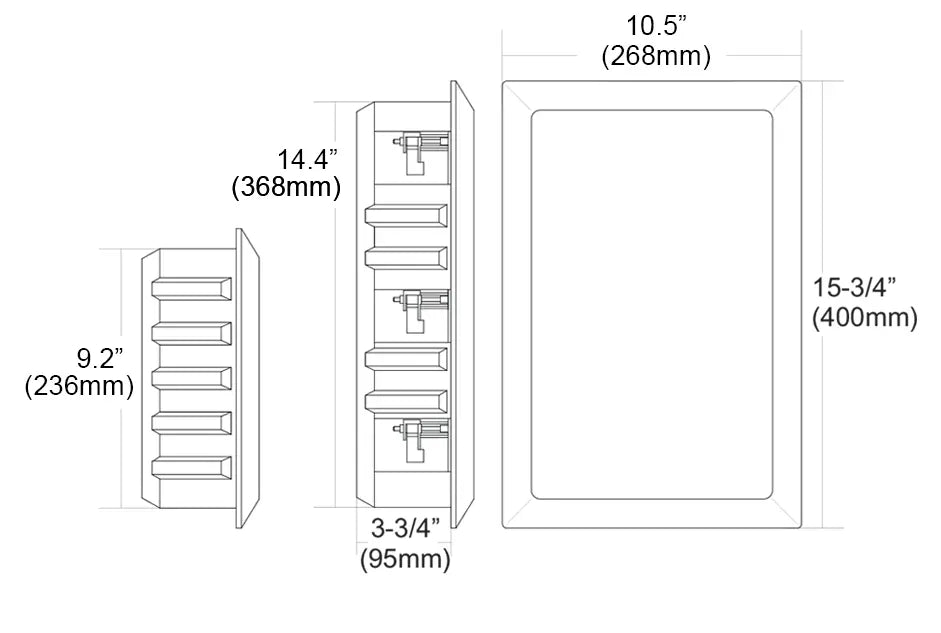

Dimensions

Height: 400 mm
Width: 268 mm
Cut out hole: 375 mm x 241.2 mm
Mounting Depth: 95 mm

Box Dimensions: 12 × 50 × 26 cm
Box Weight: 3.1 kg

1" high definition swiveling silk dome tweeter with neodymium magnet
Corrective phase plug

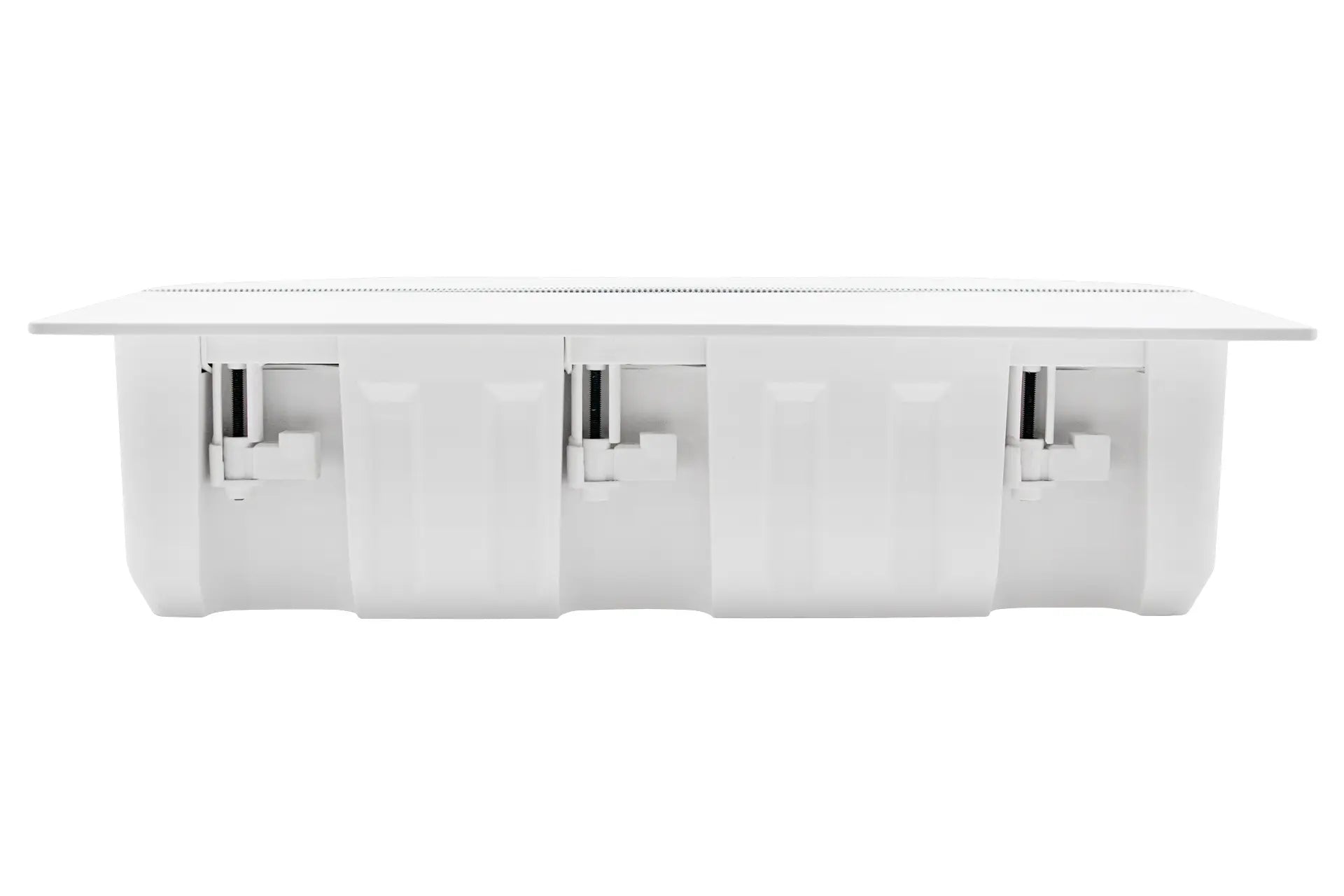

Easy-install "Turn-N-Lock™" mechanism
Finish: White / Paintable
High pass at 3kHz 18dB/Oct
Long excursion woofers with poly injection cone and high grade voice coils
Low pass at 3kHz 18dB/Oct

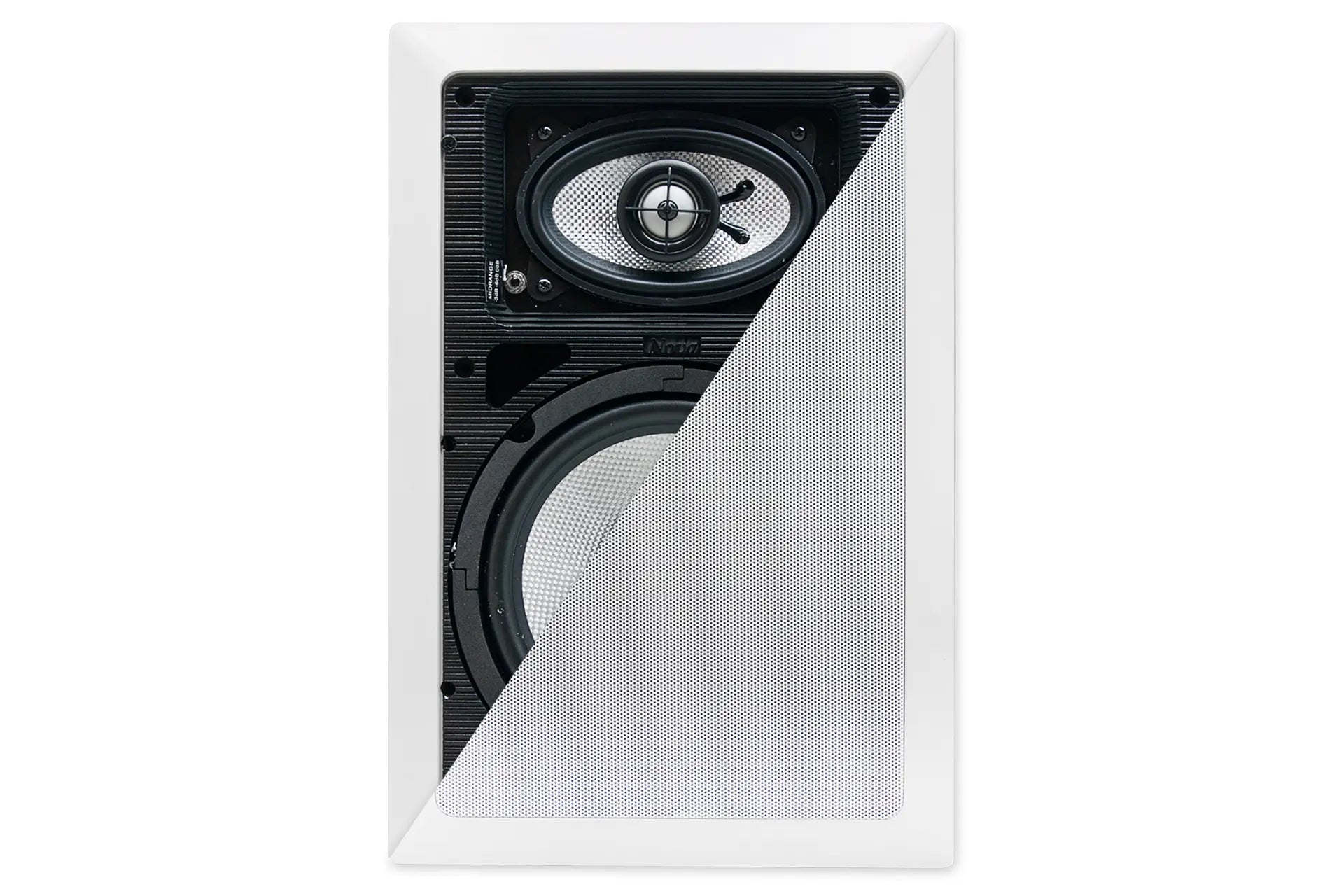

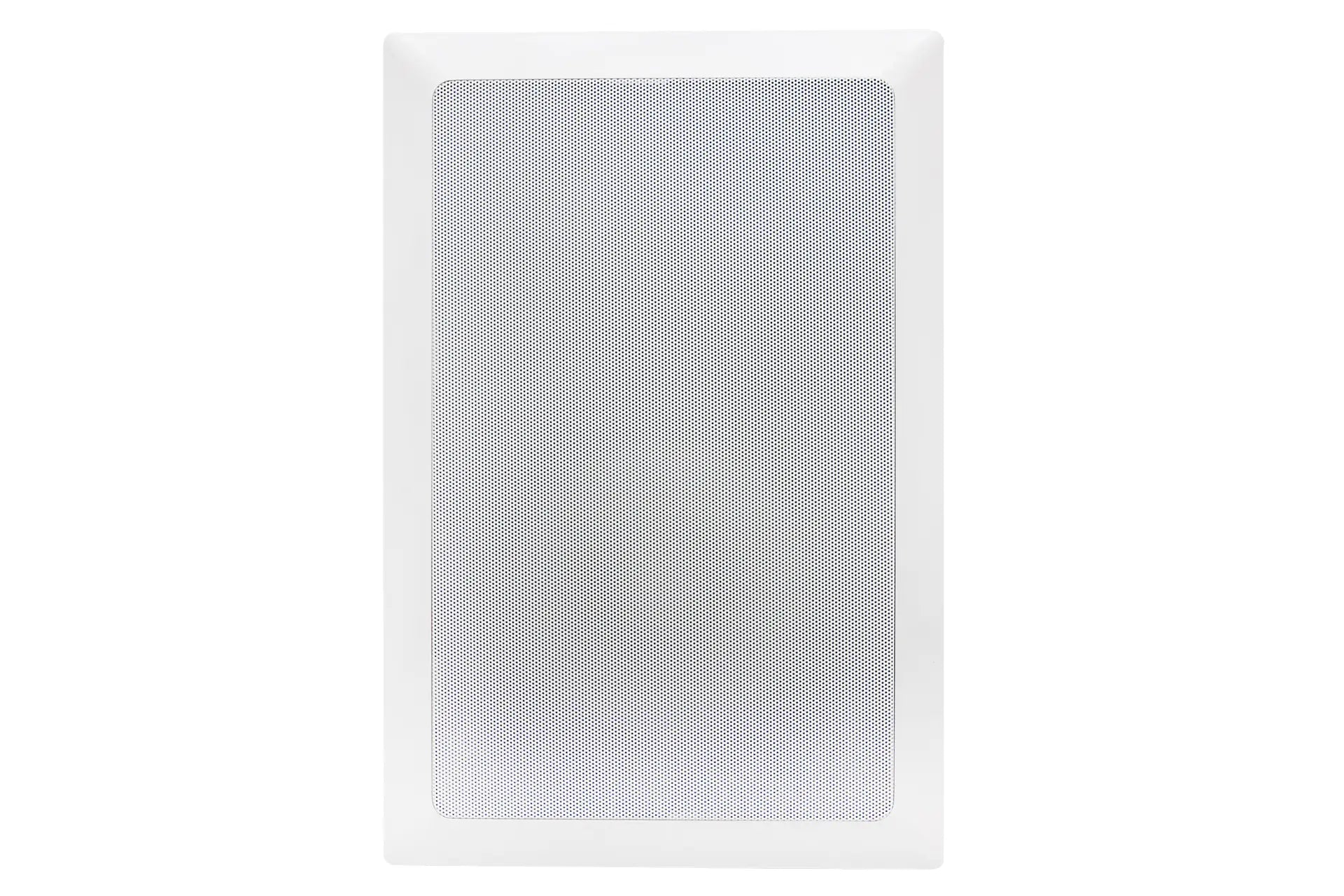

Paintable rust-proof aluminum grille
Switched ± 3dB tweeter level adjustment
Switched ± 3dB woofer level adjustment
